Inclusive
137055M
Motoric Track

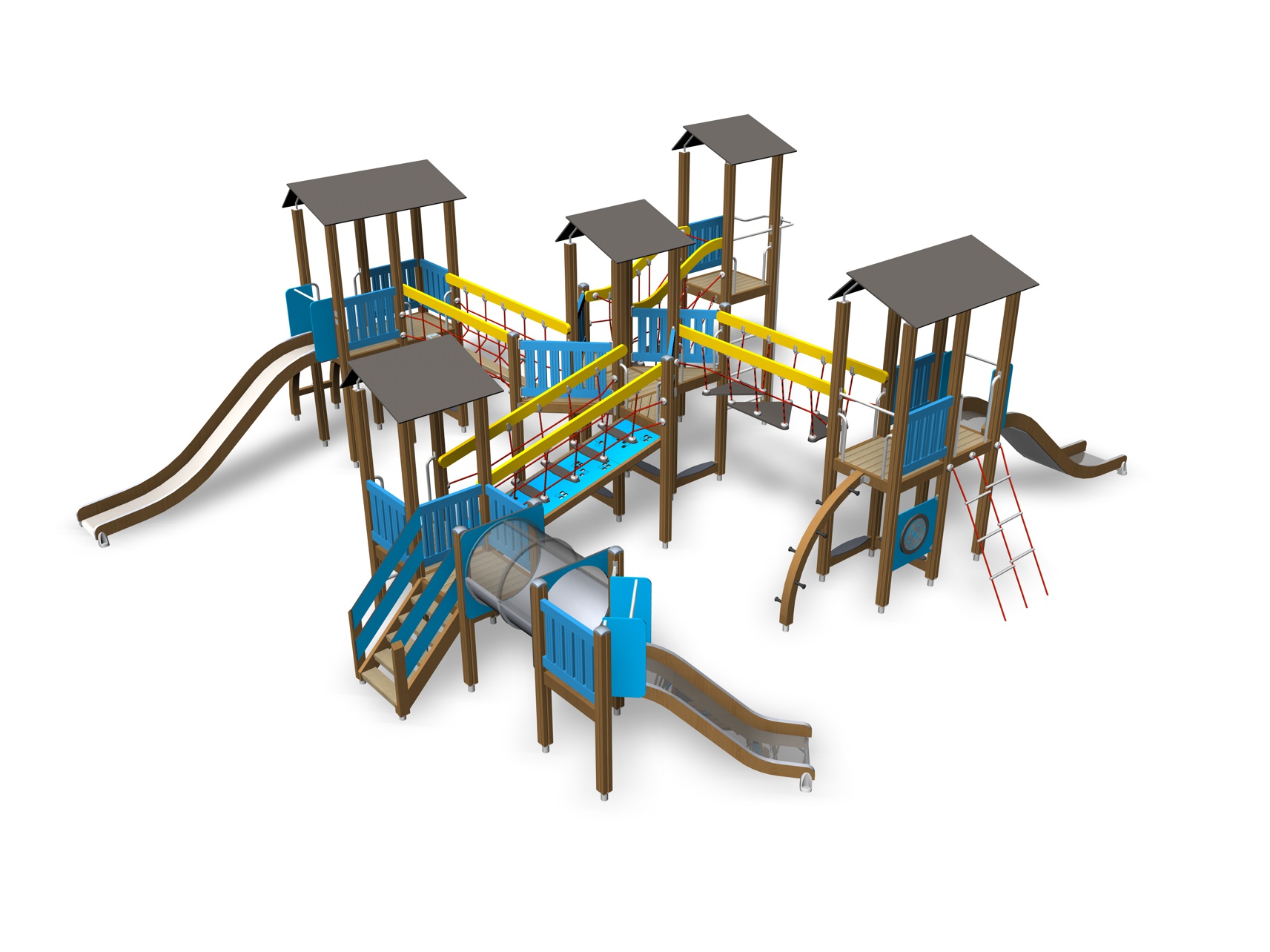

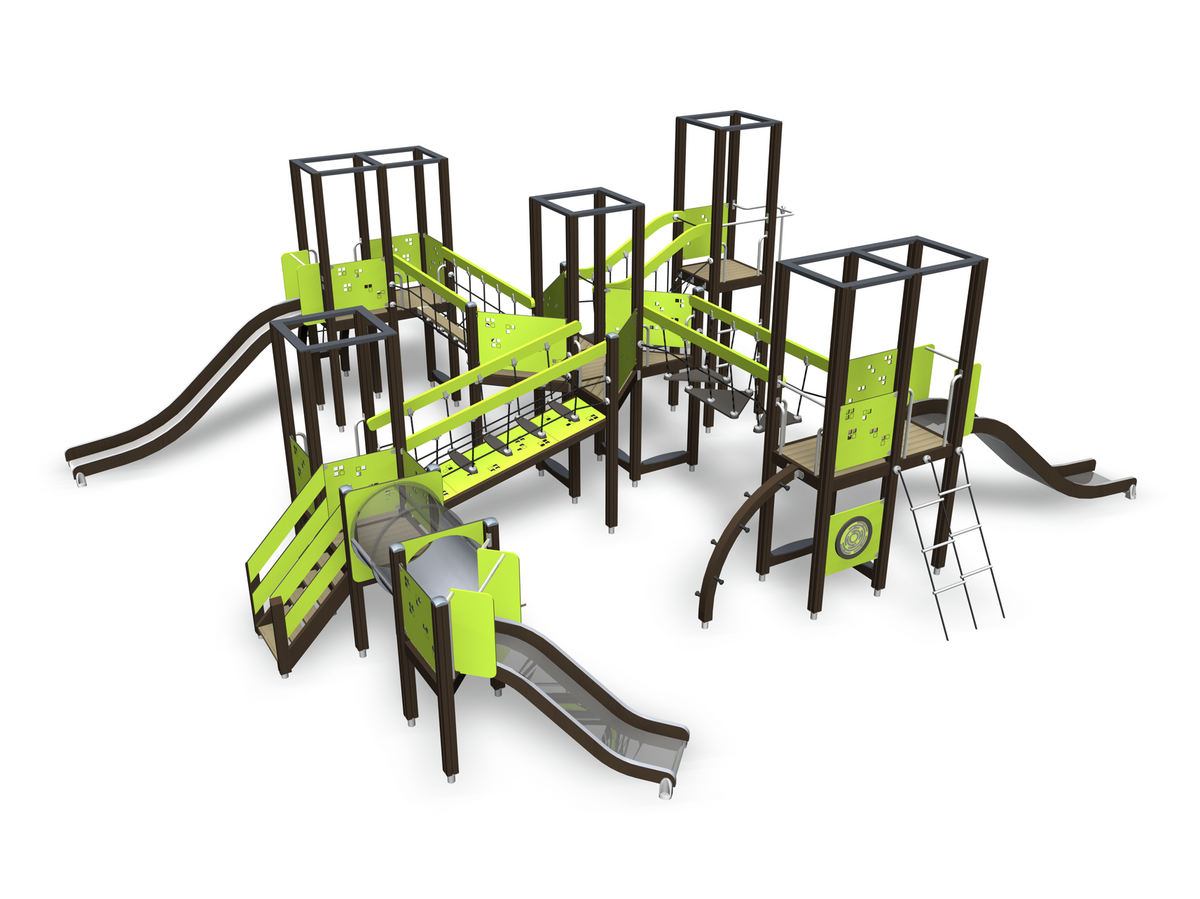

This is a large and diverse playground set that is bound to inspire all children. A lower (870 mm) and a higher (1,470 mm) tower make it exciting, and various different climbing elements work together to diversely develop the children's motor skills. The steps, tunnel and slide are suitable for safe sliding by the youngest ones. The taller tower can also be accessed by a rung net, curved climbing wall with rope, climbing frame with rungs or curved ladder and the exhilarating descent at high speed is via the slide or a fireman's pole. There is a fun board bridge and rung bridge for safe passage between the towers. Beneath the tower equipment there are labyrinth and roulette walls as well as 6 seats for having a rest when necessary.
Safety info
EN 1176-1, 3 TÜV
*
Technical information
-
104.3
-

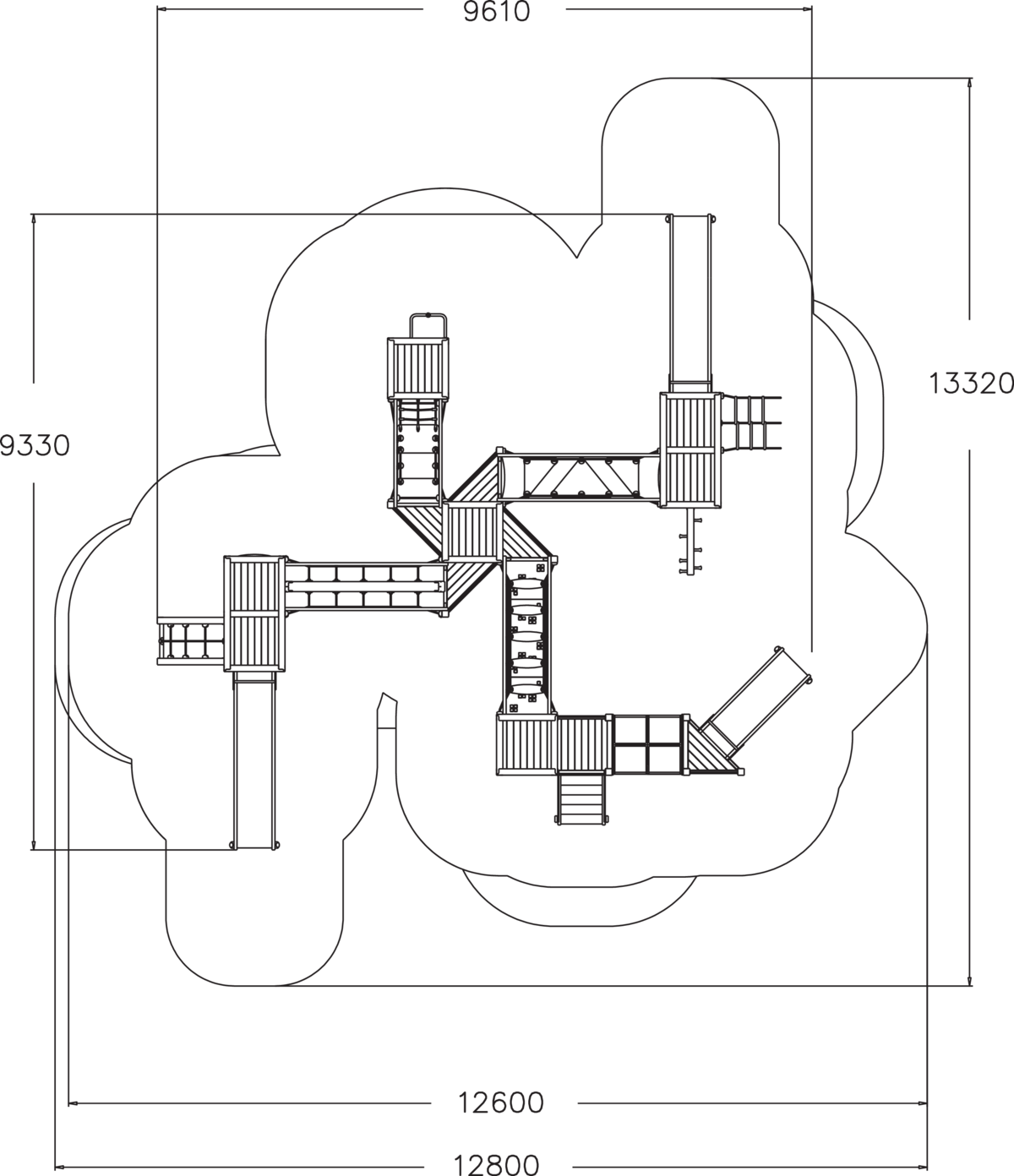

IMPACT AREA LENGTH, MM
12600
-
IMPACT AREA WIDTH, MM
13320
-
108
-
FALLING SPACE LENGTH, MM
12800
-
FALLING SPACE WIDTH, MM
13320
-
Product length, mm
9610
-
Product width, mm
9330
-
Product height, mm
3820
-
Height required, mm
3860
-
Max. free fall height, mm
1970
-
Number of users
51
-
LARGEST PART, MM
3700
-
HEAVIEST PART, KG
56
Functions
-
Slides
3
-
Towers
6
-
Play panels
1
-
Roofs
6
-
Climbing
4
-
ROOF OPTIONS
Frame roof, Ridge roof, No roof
-
SLIDE OPTIONS
Grey plastic slide, Wooden slide, Stainless steel slide
-
Stairs
Material
The frame top is made of laminate and pine. Made of laminate with a beautiful texture, the walls have small window panes for children to peek through. The nets are wrought from durable, coated steel cables. Cruciform stainless steel joints keep the crossings firmly in place, protecting the fabric against wear. The steps of the rung bridge are clearly distinguishable from the safety surface, which contributes to general safety. • Slide (+870 mm)• Slide (+1470 mm) x 2• Stairs• Rung net• Curved climbing frame with rope• Climbing frame with rungs• Climbing frame with triangular steps• Curved ladder• Board bridge• Rung bridge• Suspension bridge• Tunnel• Fireman´s pole• Labyrinth wall• Roulette wall• Seat x6
Installation information
-
Foundation options
deep_mounting, surface_mounting
-
Installation time (for 1), H
44
-
NETTO WEIGTH, KG
1738.885
Installation instructions
Maintenance and spare parts

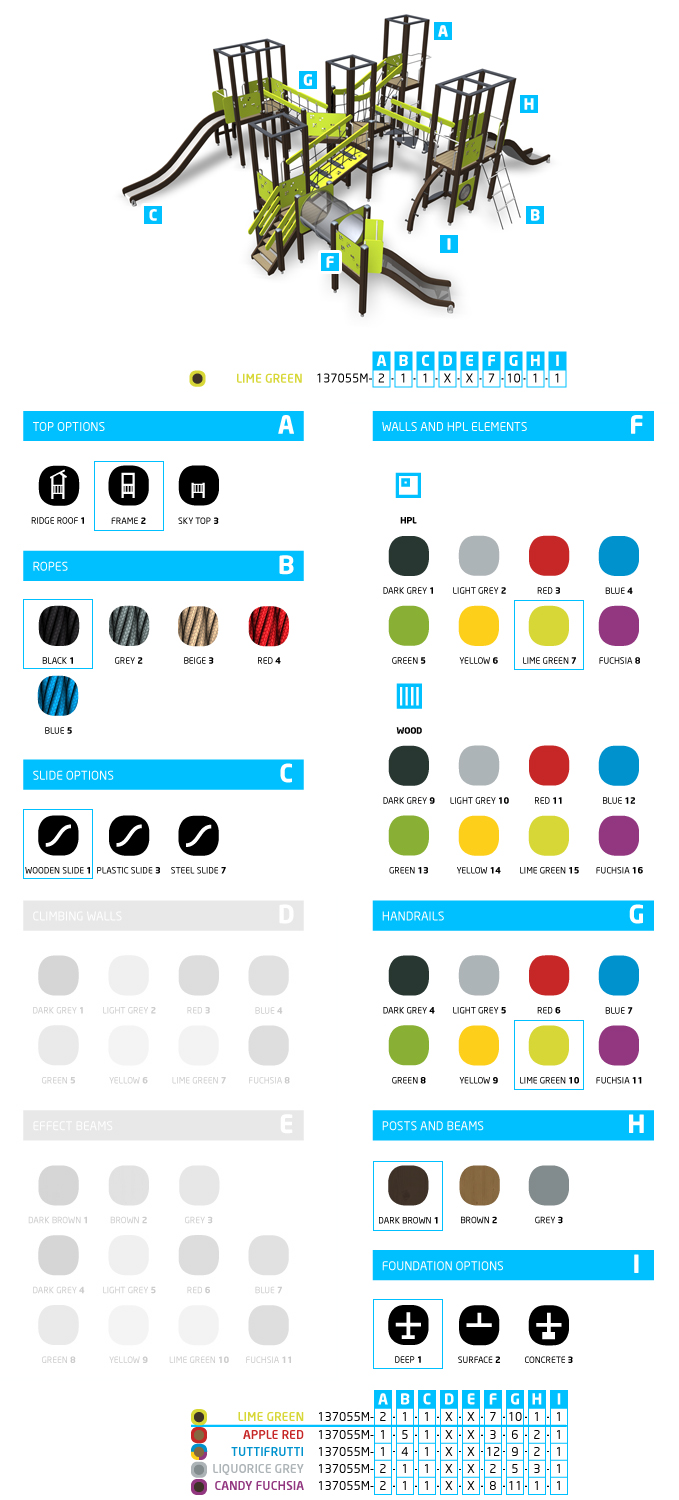

Switch It!
This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
