Inclusive
137043M

Xroll

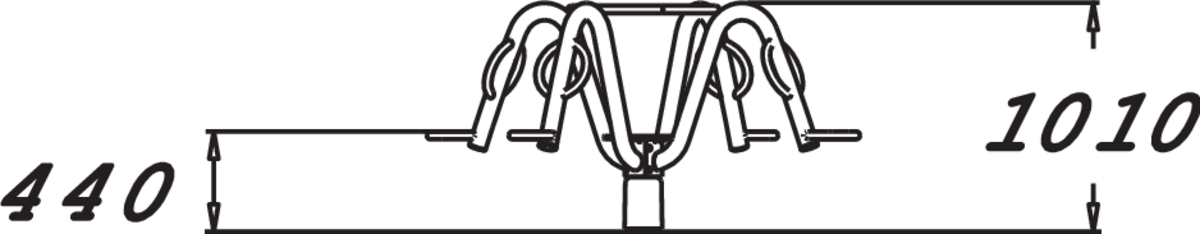

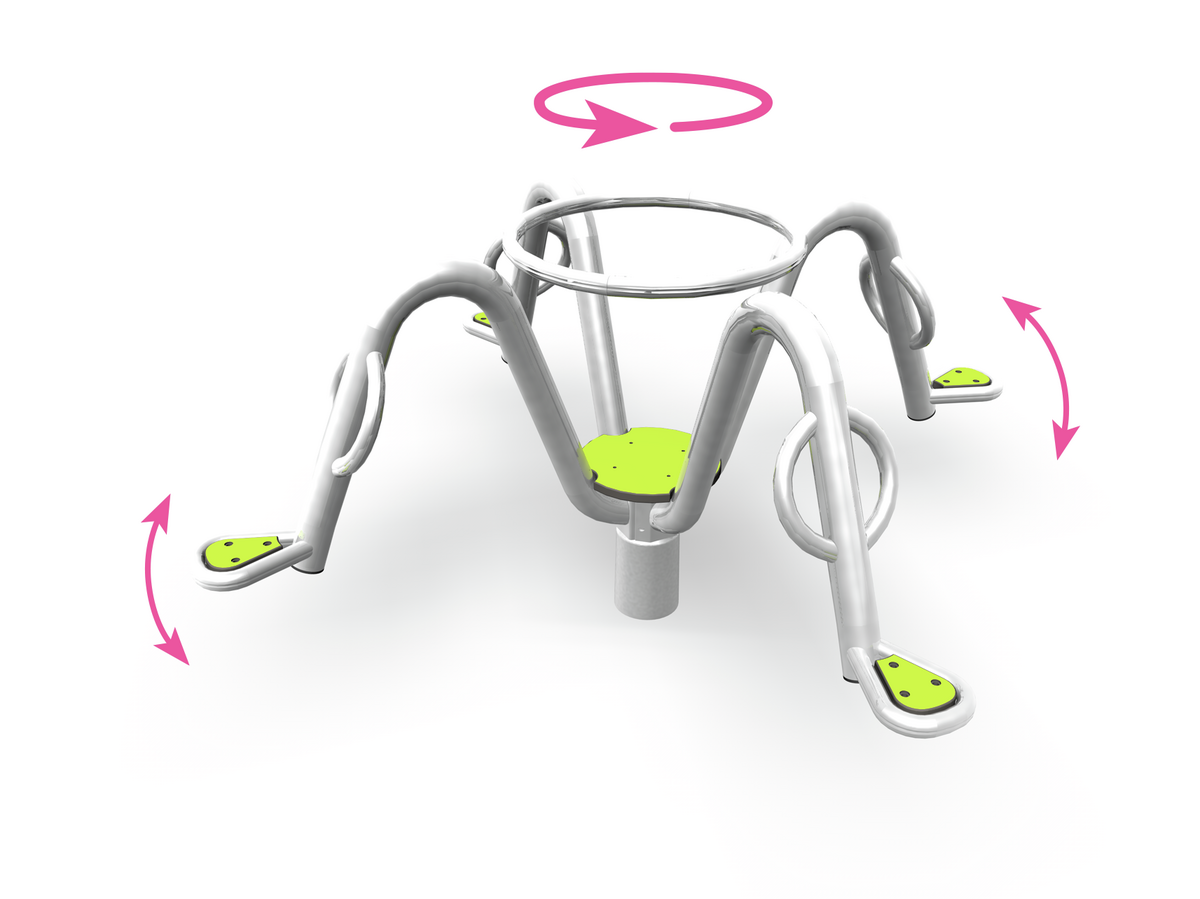

Rotating play equipment with seats for four persons. The seats rotate around a pole and move up and down. The seats are located at a height of 440 mm. A round plate in the middle of the equipment provides space for standing. The small diameter of the equipment prevents the rotating speed getting too high, and therefore the equipment does not need a braking system. Whirling around in the play equipment offers children a fun way of developing their sense of rhythm and balance.

Safety info
EN 1176-1, 6 TÜV
User age
4+
Metal parts
Gray RAL 9022
Walls/HPL parts
Blue RAL 640-2 Dark grey RAL 7024 Fuchsia RAL 4006 Green RAL 6018 Light grey RAL 7040 Lime green RAL 250-3 Red RAL 3020 Yellow RAL 1003
*

Technical information

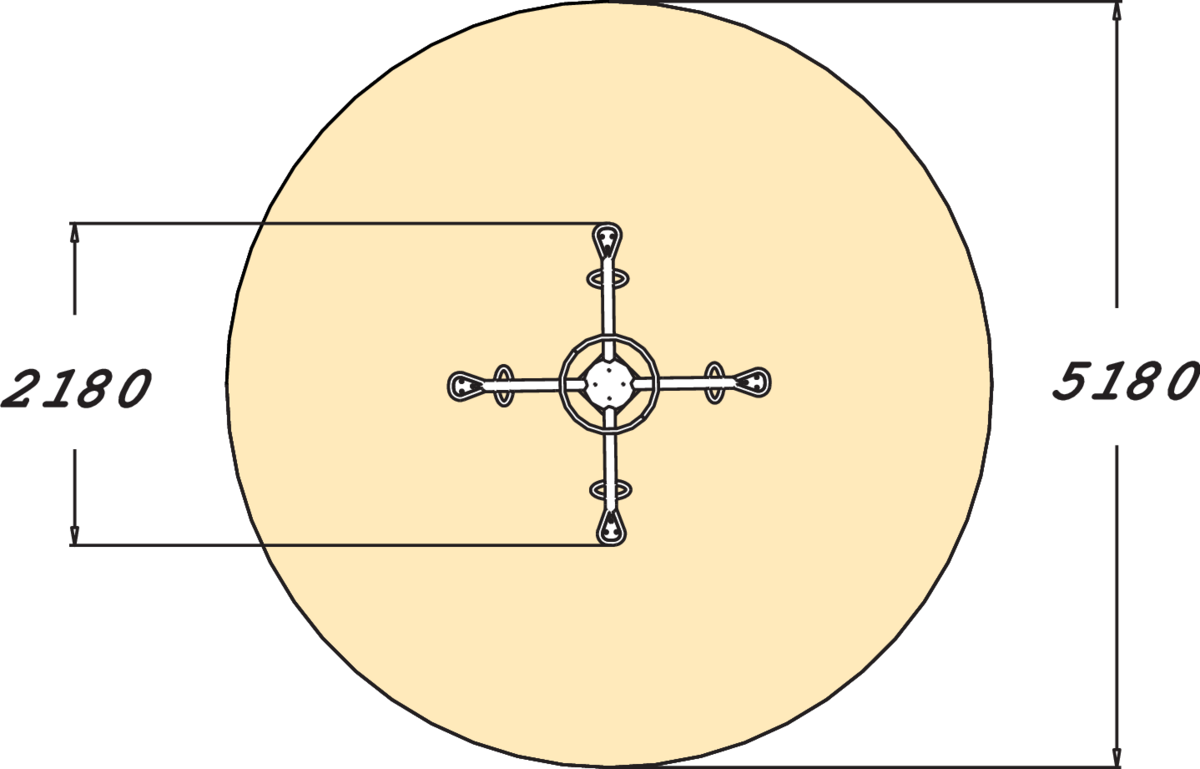

  • Impact area, m²
    21
  • IMPACT AREA LENGTH, MM
    5180
  • IMPACT AREA WIDTH, MM
    5180
  • Falling space, m²
    21
  • FALLING SPACE LENGTH, MM
    5180
  • FALLING SPACE WIDTH, MM
    5180
  • Product length, mm
    2180
  • Product width, mm
    2180
  • Product height, mm
    1010
  • Height required, mm
    2000
  • Max. free fall height, mm
    1000
  • Number of users
    5
  • LARGEST PART, MM
    1045
  • HEAVIEST PART, KG
    54

Material

The metal parts are made of grey, Lappcoat-treated steel. The colour of the seat laminates can be chosen to match the other colours in the playground.

Colors

Metal parts
  • Gray RAL 9022 Gray RAL 9022
Walls/HPL parts
  • Blue RAL 640-2 Blue RAL 640-2
  • Dark grey RAL 7024 Dark grey RAL 7024
  • Fuchsia RAL 4006 Fuchsia RAL 4006
  • Green RAL 6018 Green RAL 6018
  • Light grey RAL 7040 Light grey RAL 7040
  • Lime green RAL 250-3 Lime green RAL 250-3
  • Red RAL 3020 Red RAL 3020
  • Yellow RAL 1003 Yellow RAL 1003

Installation information

  • Foundation options
    Deep mounting, Surface mounting
  • Installation time (for 1), H
    4
  • NETTO WEIGTH, KG
    109.611

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
