made in finland
137302M

Motoric Track

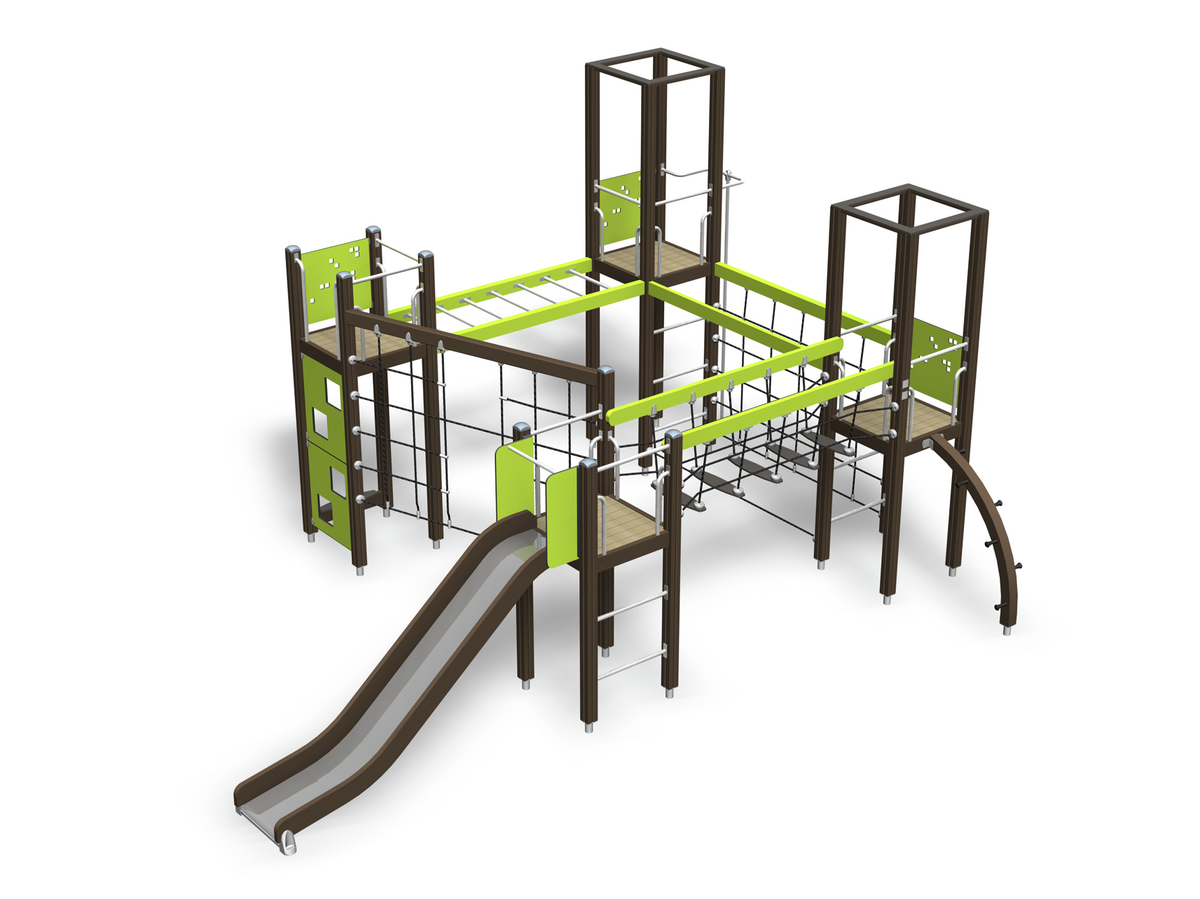

A motoric workout offering a variety of climbing and balancing options. This workout offers a circular path that can be traversed. Two of the towers are located at a height of 1970mm, and two at 1470mm. Access to the towers is via curved ladders, up a climbing wall with holes, or up a climbing net. Children can descend the towers using a long slide or a fireman's pole. One tower can be accessed from the other by balancing on a rung bridge, by using the monkey bars, or by climbing across the climbing nets. The motoric workout can accommodate a large number of children, making it highly suitable for schoolyards and similar locations. Balancing develops especially balance and body control. The frame top is made of laminate and pine. When the product is placed in a kindergarten yard, please consider adding a safety bridge (701625SP) under the step bridge crossing.
CATEGORY
Safety info
EN 1176-1, 3 TÜV
User age
4+
Colours
Apple Red - light brown posts and red hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates Lime green - dark brown posts and lime green hpl plates Liquorice Grey - grey posts and light grey hpl plates Tuttifrutti - light brown posts and blue wooden walls
*

Technical information

  • Impact area, m²
    64.4
  • IMPACT AREA LENGTH, MM
    10750
  • IMPACT AREA WIDTH, MM
    8300
  • Falling space, m²
    64.7
  • FALLING SPACE LENGTH, MM
    10750
  • FALLING SPACE WIDTH, MM
    8390
  • Product length, mm
    7080
  • Product width, mm
    5100
  • Product height, mm
    3820
  • Height required, mm
    3820
  • Max. free fall height, mm
    2470
  • Number of users
    24
  • LARGEST PART, MM
    2685
  • HEAVIEST PART, KG
    56

Functions

  • Slides Slides
    1
  • Towers Towers
    4
  • Roofs Roofs
    2
  • Climbing Climbing
    6
  • ROOF OPTIONS
    Frame roof, Ridge roof, No roof
  • SLIDE OPTIONS
    Grey plastic slide, Wooden slide, Stainless steel slide

Material

Made of laminate with a beautiful texture, the walls have small window panes for children to peek through. The nets are wrought from durable, coated steel cables. Cruciform stainless steel joints keep the crossings firmly in place, protecting the fabric against wear.

Colors

Colours
  • Apple Red - light brown posts and red hpl plates Apple Red - light brown posts and red hpl plates
  • Candy Fuchsia - dark brown posts and fuchsia hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates
  • Lime green - dark brown posts and lime green hpl plates Lime green - dark brown posts and lime green hpl plates
  • Liquorice Grey - grey posts and light grey hpl plates Liquorice Grey - grey posts and light grey hpl plates
  • Tuttifrutti - light brown posts and blue wooden walls Tuttifrutti - light brown posts and blue wooden walls

Installation information

  • Foundation options
    Deep mounting, Surface mounting
  • Installation time (for 1), H
    20
  • NETTO WEIGTH, KG
    1311.58

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
