239010M

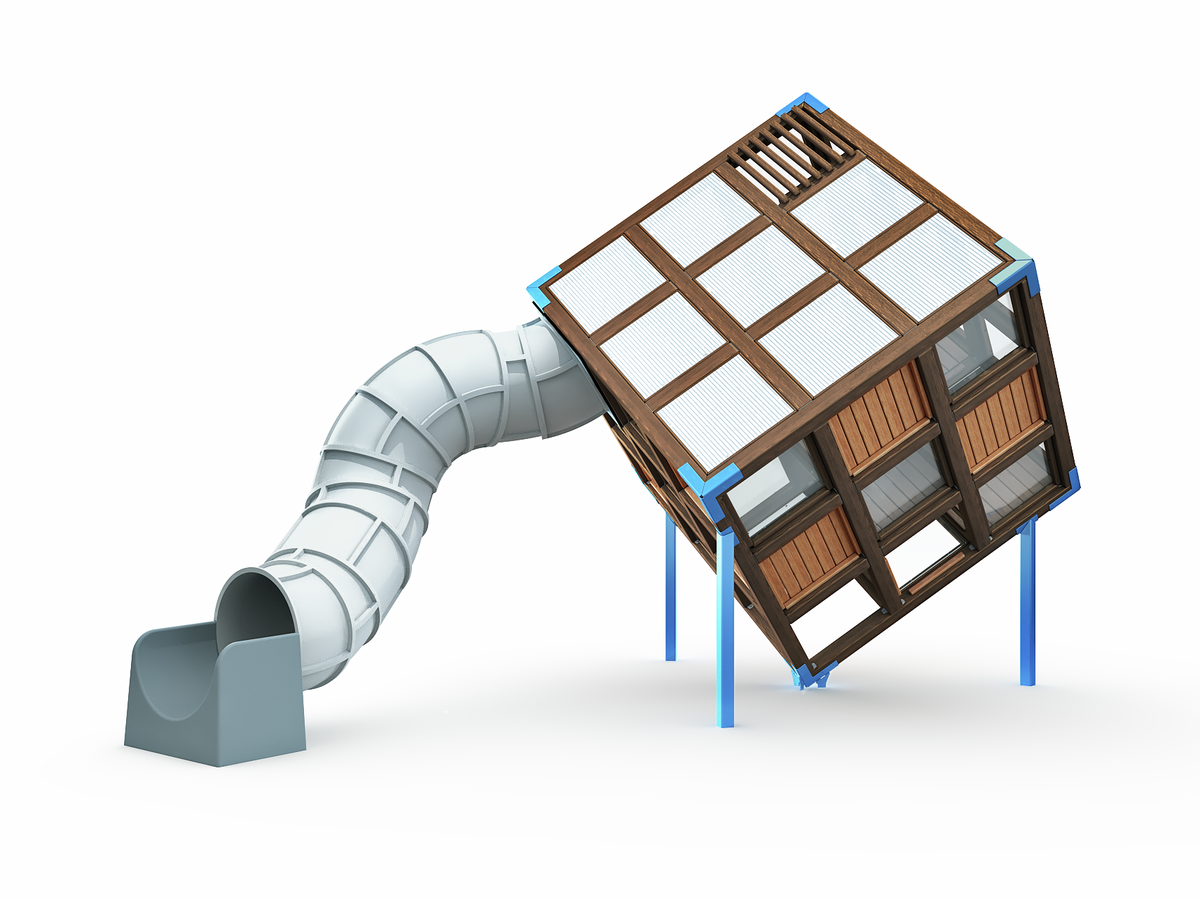

Halo Diamond 1

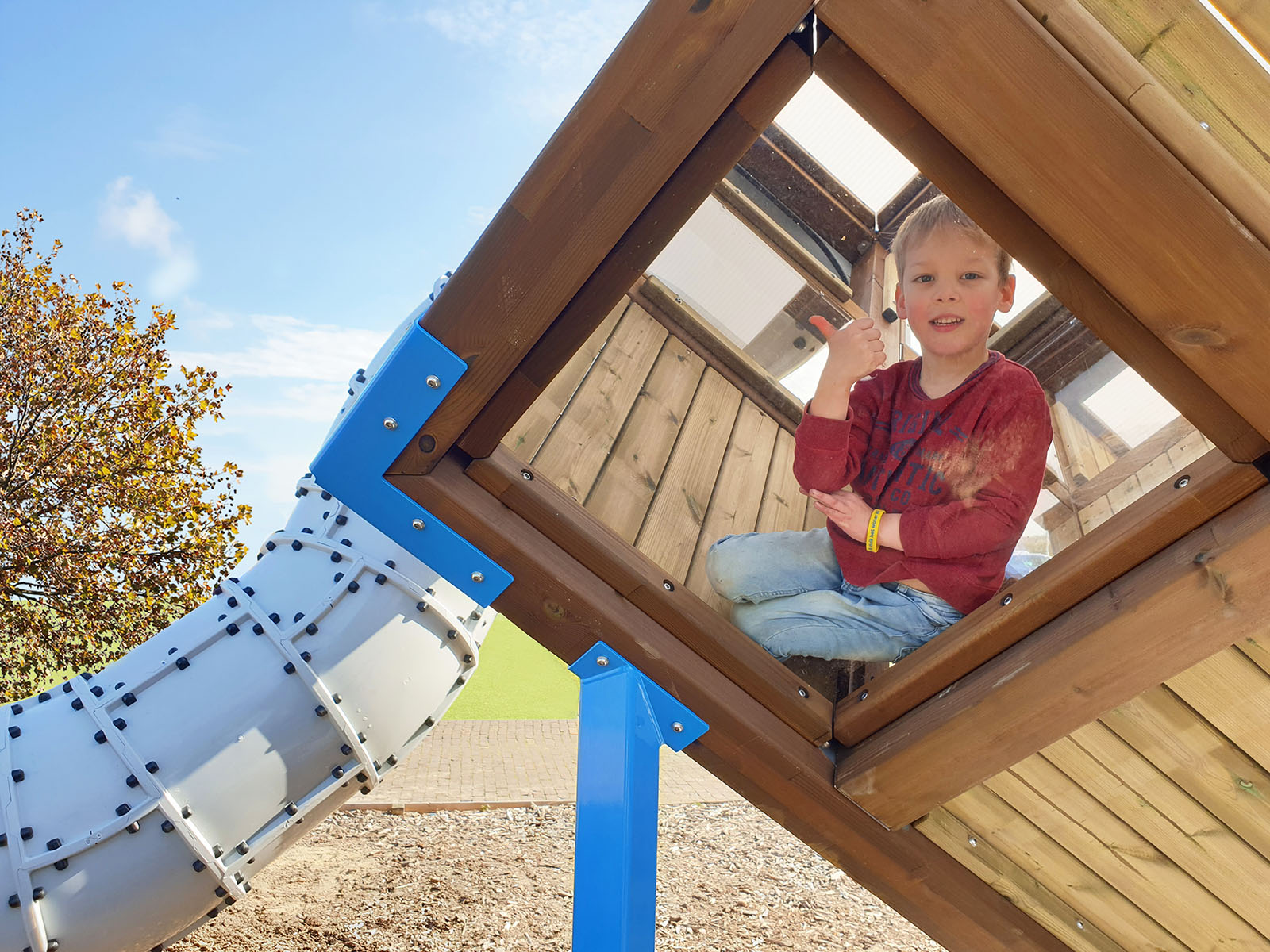

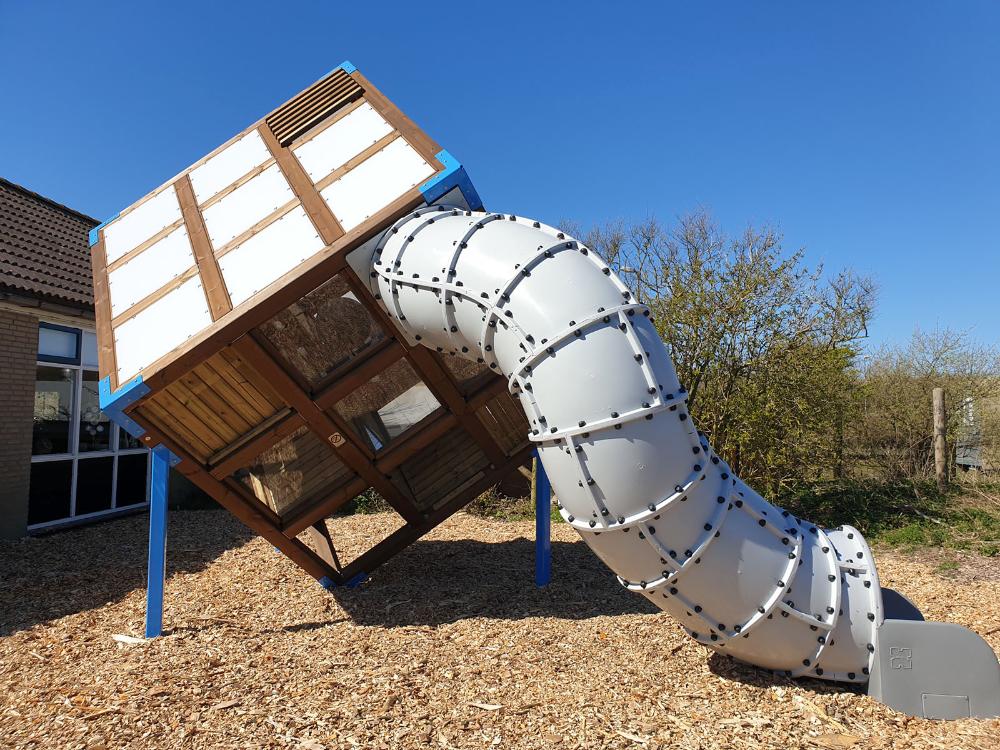

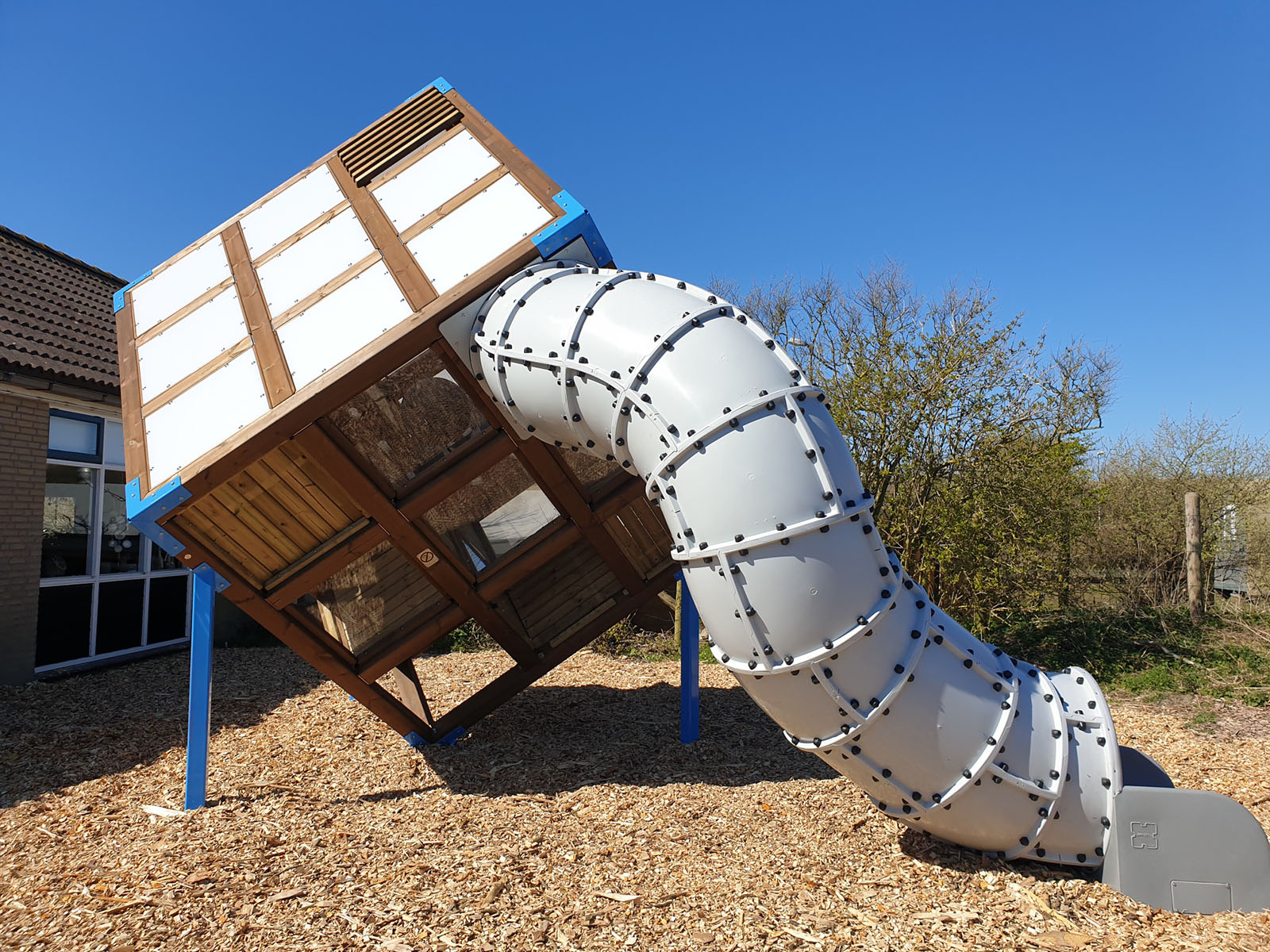

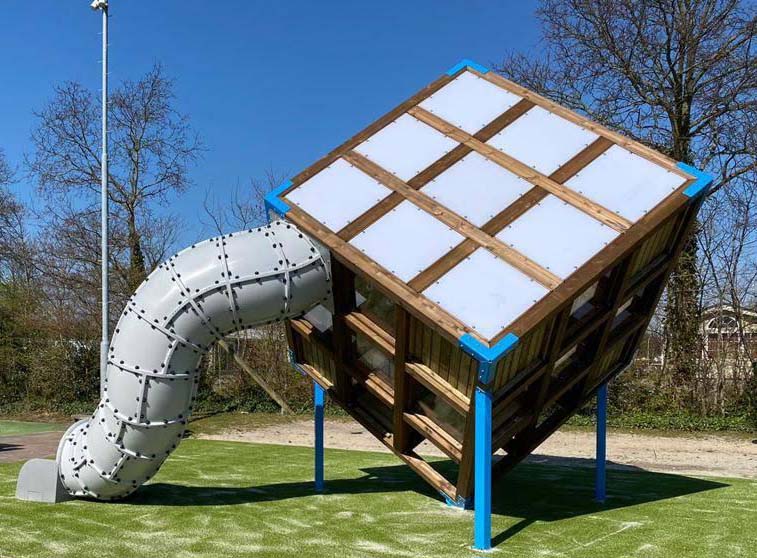

”This is something you really need to try yourself", said each and every one of our testers of the Halo Diamond. What is it all about? When the cube is not sitting flat on the ground but tilted, standing on one of its corner tips, your ability to balance and navigate is being tested in the most surprising way ever. We promise the experience is way more challenging and fun than you may expect. Inside the cube we placed some familiar elements, such as a balancing ball and a rope net, as well as an entry to the plastic tube slide. The old saying "seeing is believing" does not apply here. You just have to climb in to experience it yourself! Tube slide available also in stainless steel.

CATEGORY
Safety info
EN 1176-1, 3 TÜV
User age
6+
Wooden posts
Brown

Technical information

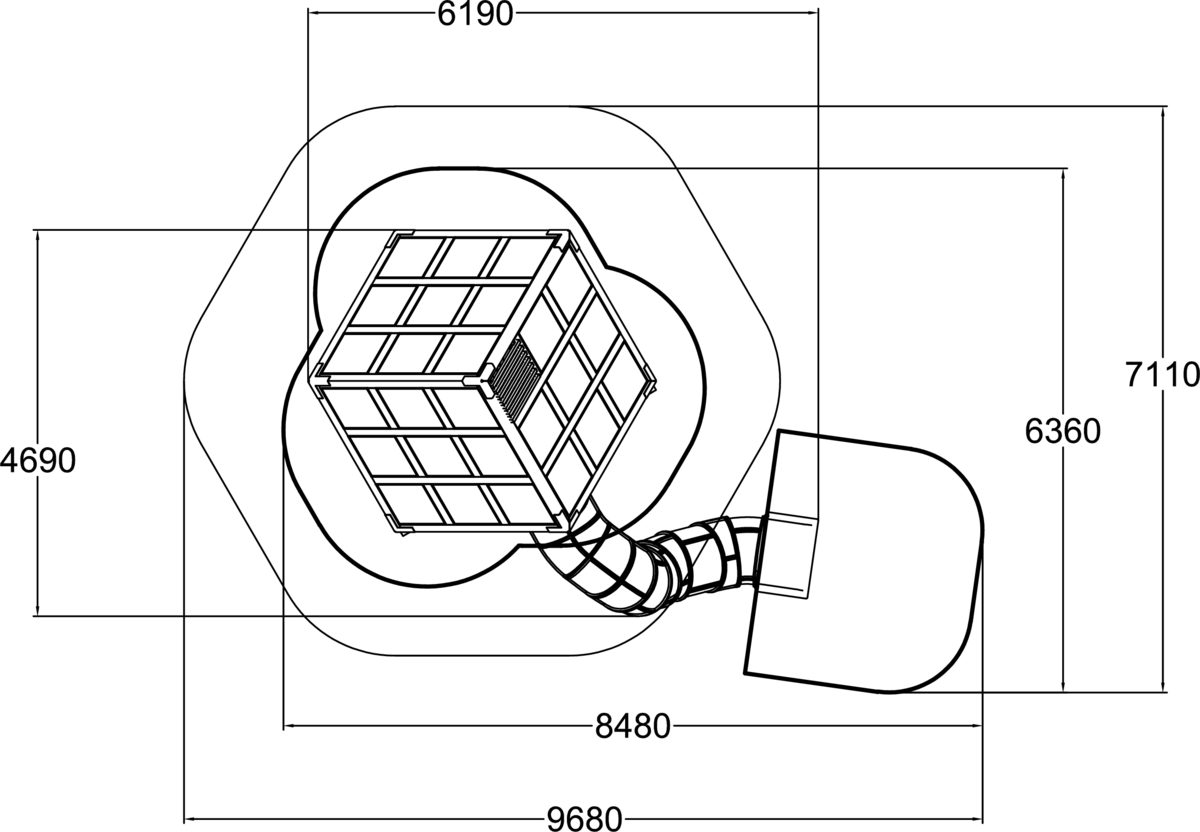

  • Impact area, m²
    26.6
  • IMPACT AREA LENGTH, MM
    8480
  • IMPACT AREA WIDTH, MM
    6360
  • Falling space, m²
    45.1
  • FALLING SPACE LENGTH, MM
    9680
  • FALLING SPACE WIDTH, MM
    7110
  • Product length, mm
    6190
  • Product width, mm
    4690

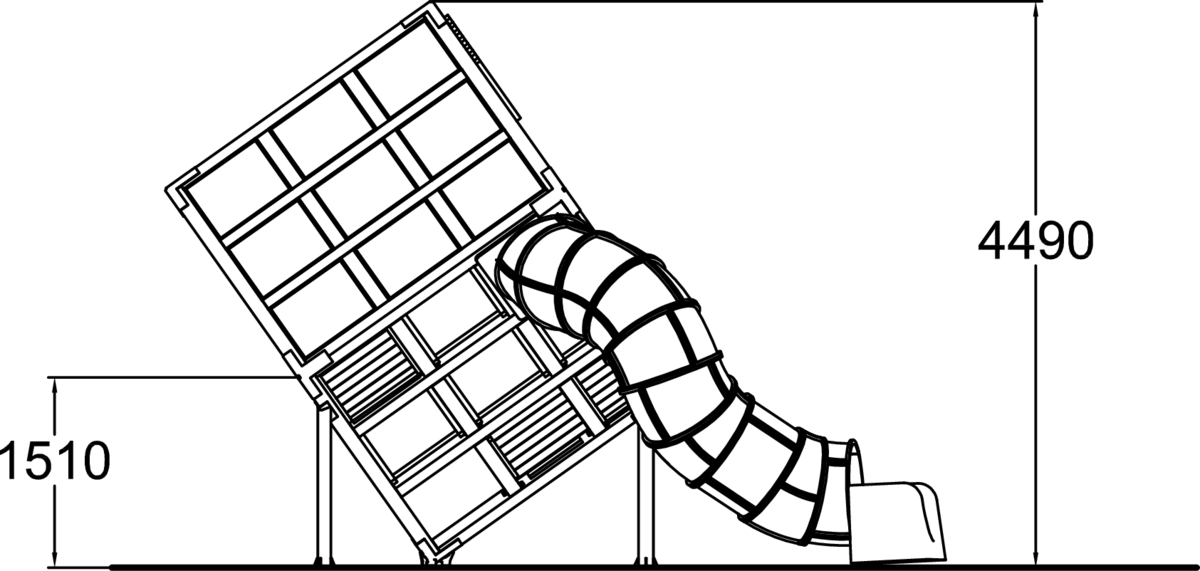

  • Product height, mm
    4490
  • Height required, mm
    4500
  • Max. free fall height, mm
    1000
  • Number of users
    15
  • LARGEST PART, MM
    2600
  • HEAVIEST PART, KG
    22.5

Functions

  • Slides Slides
    1

Material

Wooden posts

  • Pressure-treated with glazing paint
  • Post dimensions 120 x 120 mm Brown

Metal feet and corners

  • LappCoat-treated steel 5 mm Blue RAL 640-2 or dark grey RAL 7024

Wall and floor elements:

  • Wooden slatted wall, Brown (same as posts) 633 x 785 mm
  • See-through polycarbonate panels 670 x 670 x 8 mm
  • See-through acrylic panels 670 x 670 x 20 mm
  • High-pressure laminate under the balancing ball, Dark grey 702 x 702 x 20 mm
  • Wooden floor elements (preserved, greenish) 701 x 685 x 32 mm

Roof:

  • Opal white cellular polycarbonate panels 670 x 670 x 16 mm

Climbing ropes:

  • Steel-reinforced polyamide rope
  • Connections of stainless steel
  • Attachment points fibre-reinforced polyamide plastic
  • Ø 16 mm (rope) Black

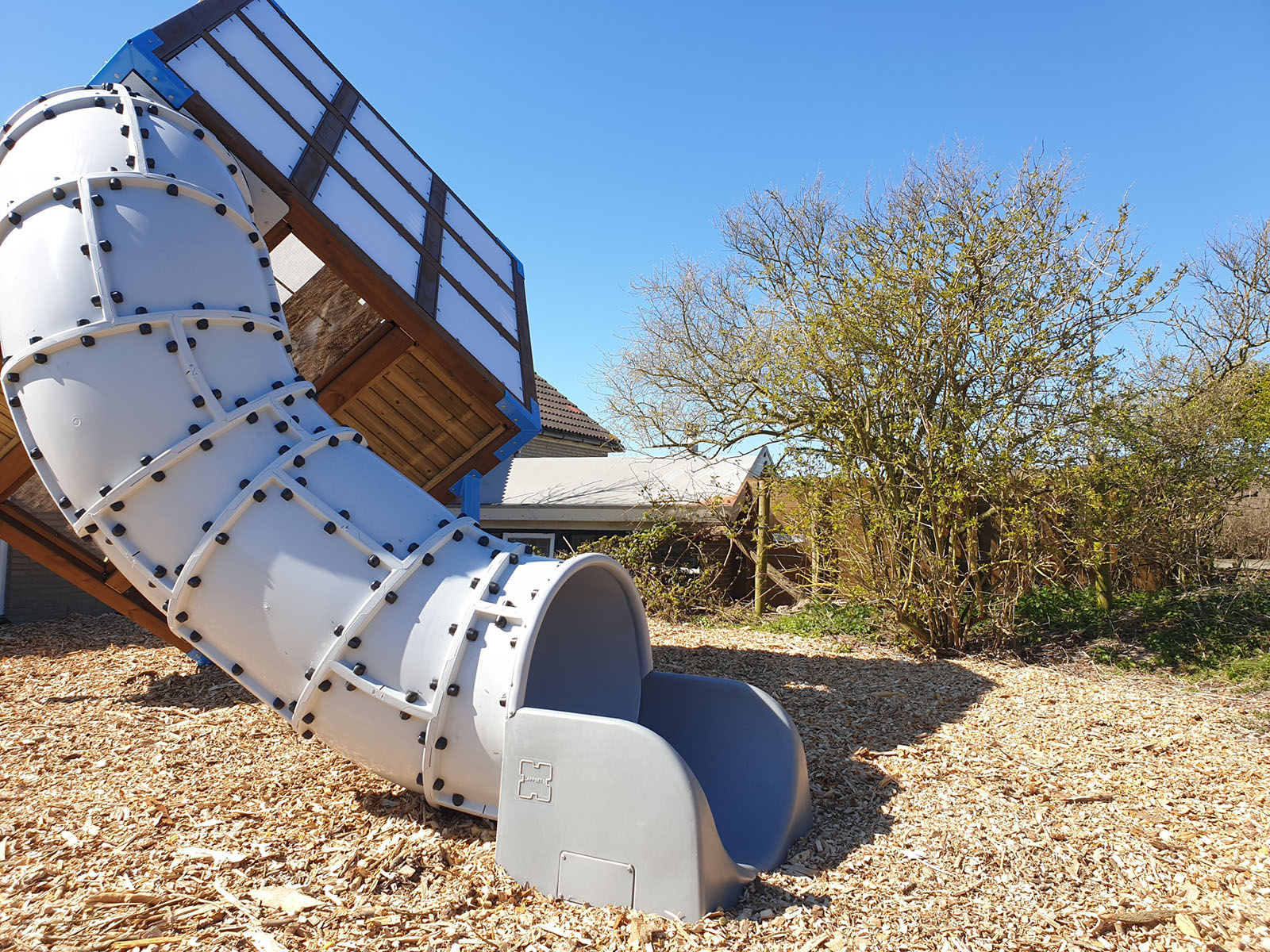

Plastic slide

  • Polypropylene Ø 800 mm Grey
  • Optional: Slide of stainless steel Ø 800 mm

Balancing elements

  • Balancing/climbing ball, metal foot Ø 450 mm, Dark grey

Colors

Wooden posts
  • Brown Brown

Installation information

  • Installation time (for 1), H
    28
  • NETTO WEIGTH, KG
    1948.53

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
