081734M

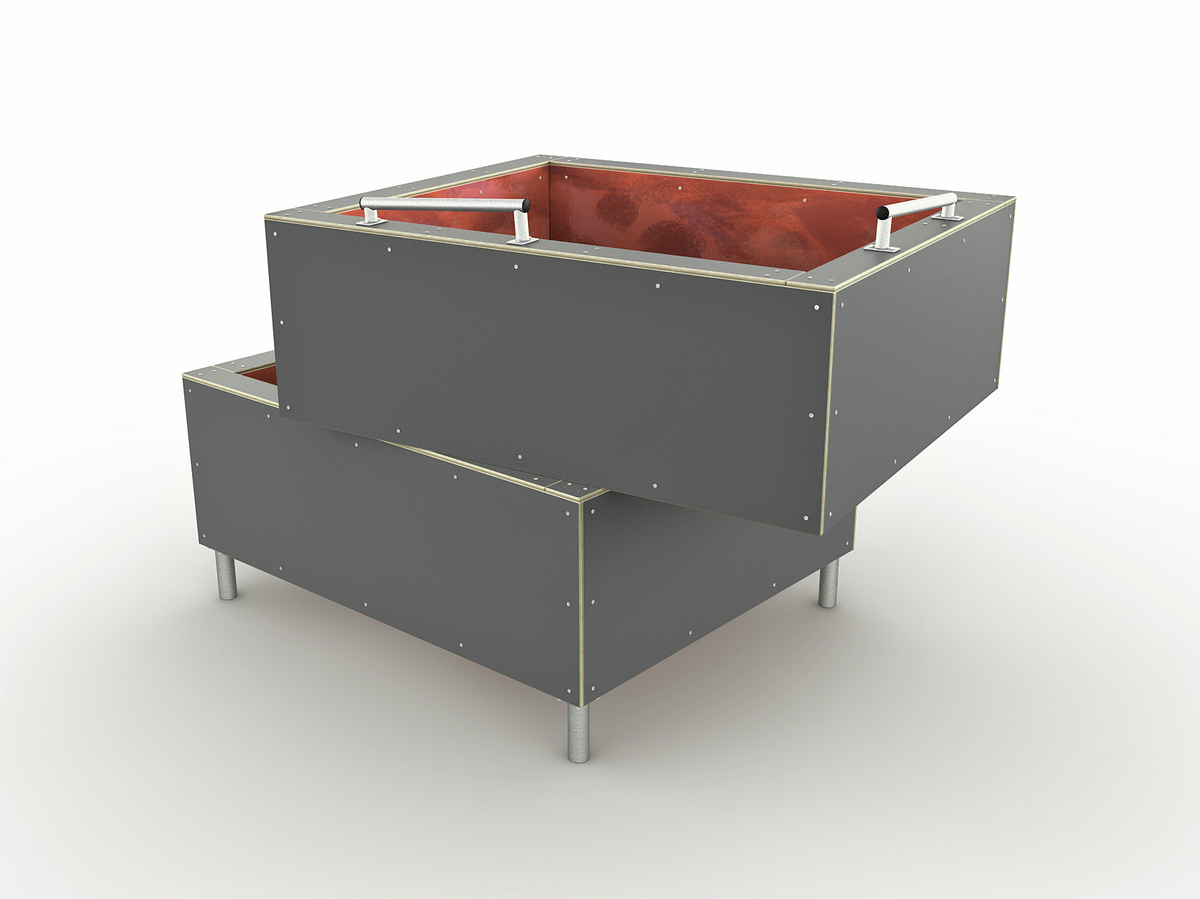

Base Pile

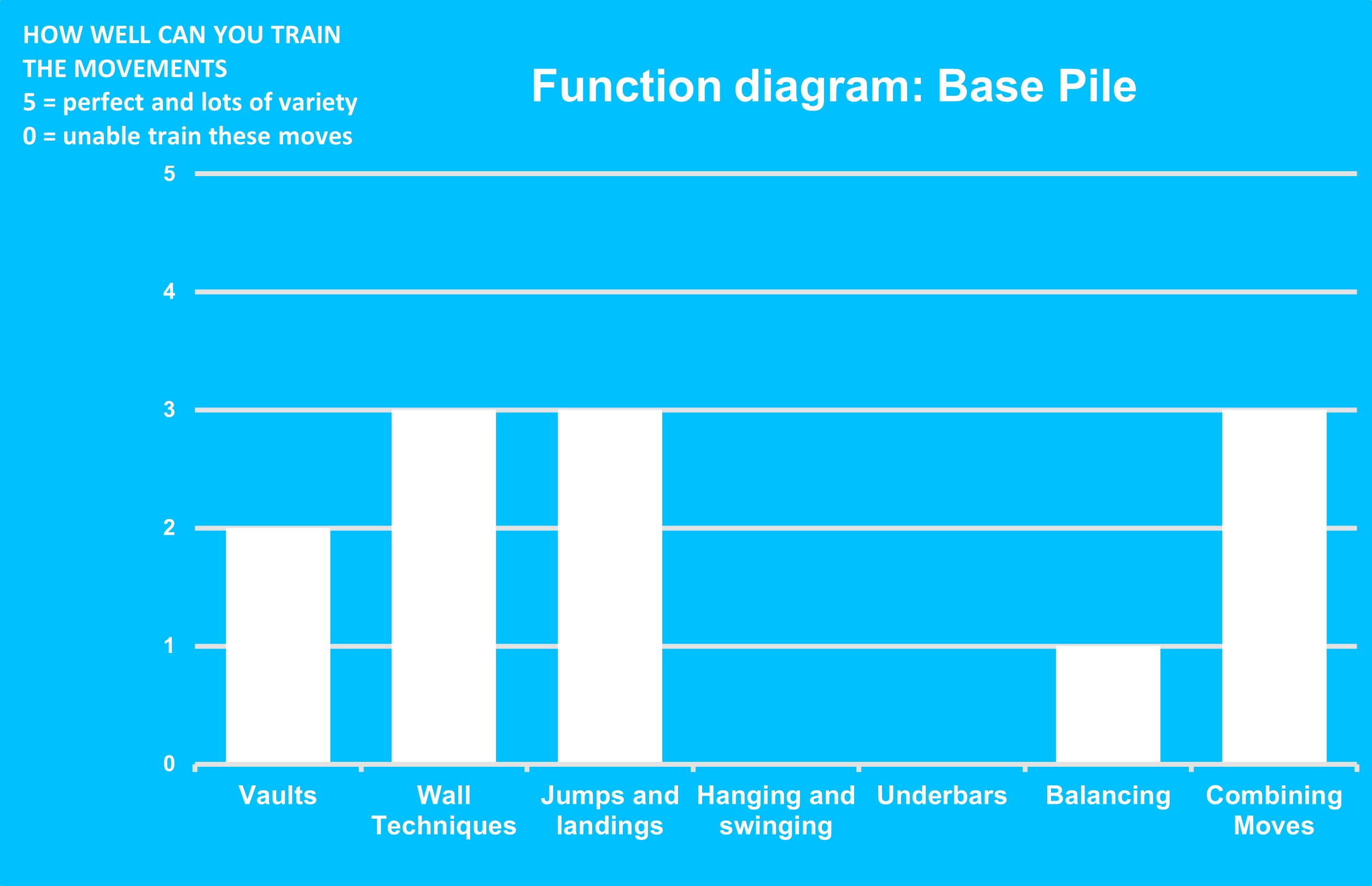

This extraordinary parkour element truly shows the strenght of Dash parkour product line: simple forms put together to provide a ton of stuff to do. ​ Base Pile's core functions are vaults, pop-vaults, jumps, landings and wall techniques. Maze-like structure inspires to train parkour and also initiates games and play with parkour type of movement. ​ ​ The design and inner wall colouring give it the creative look which is charasteristic to the whole Dash Parkour series.
CATEGORY
Safety info
EN 16899 TÜV
Wooden posts
Light grey RAL 7040
Metal parts
Gray RAL 9022
*

Technical information

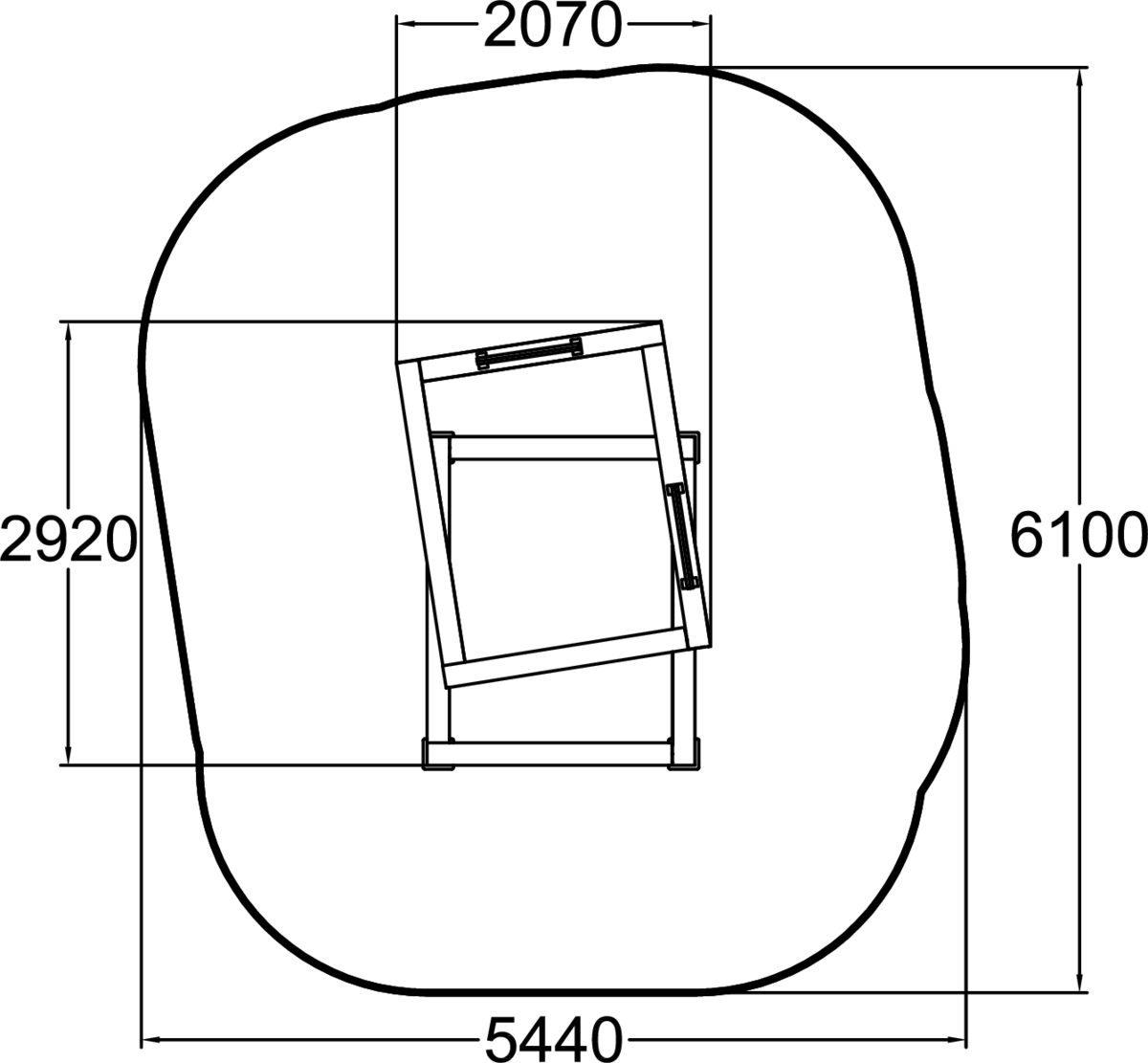

  • Falling space, m²
    28.1
  • FALLING SPACE LENGTH, MM
    6100
  • FALLING SPACE WIDTH, MM
    5440
  • Product length, mm
    2920
  • Product width, mm
    2070

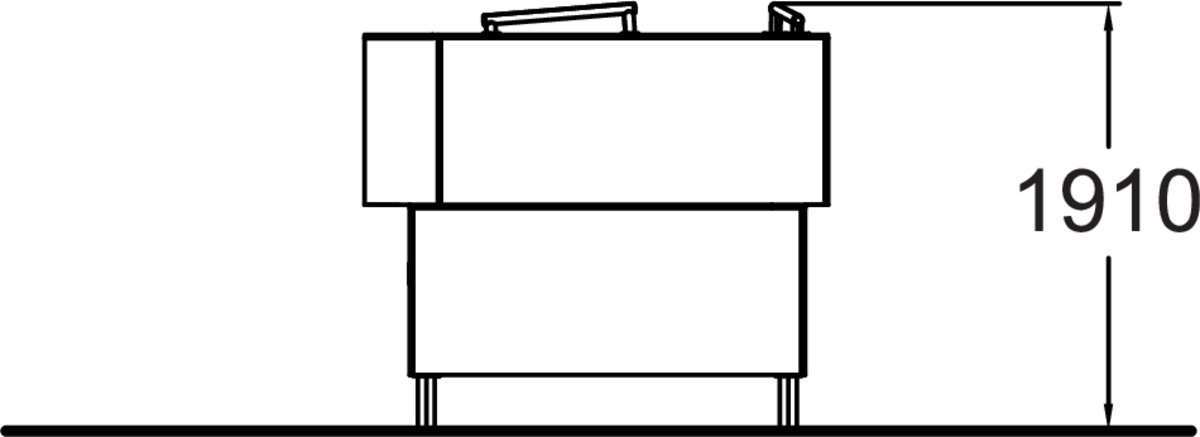

  • Product height, mm
    1910
  • Height required, mm
    3920
  • Max. free fall height, mm
    1910
  • LARGEST PART, MM
    2170
  • HEAVIEST PART, KG
    17.5

Colors

Wooden posts
  • Light grey RAL 7040 Light grey RAL 7040
Metal parts
  • Gray RAL 9022 Gray RAL 9022

Installation information

  • Foundation options
    deep_mounting, surface_mounting
  • Installation time (for 1), H
    2
  • NETTO WEIGTH, KG
    703.538

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
