made in finland
New
239040M

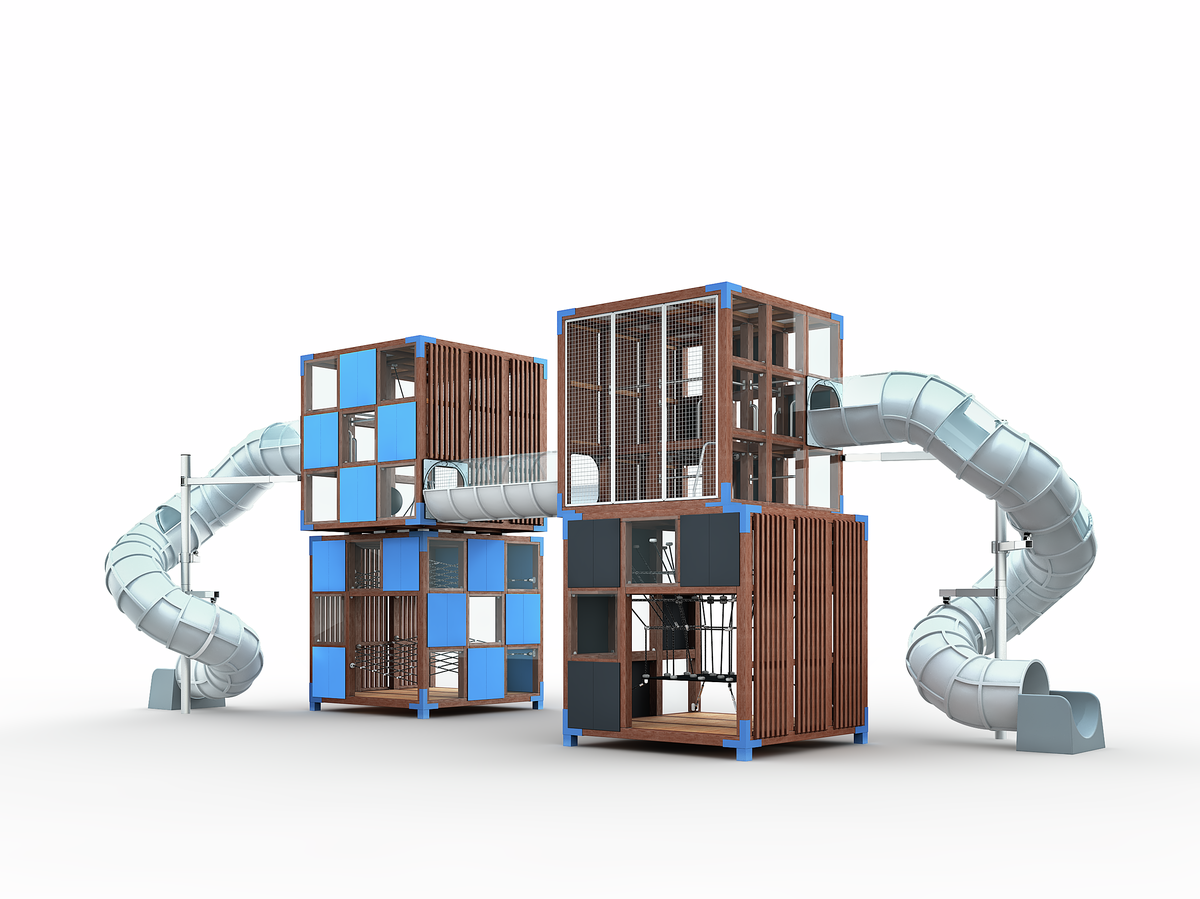

HALO CUBIC

Cubic can be expanded not only upwards but also horizontally. This four-cube unit forms two separate towers that are connected by an intriguing tunnel. The topmost cubes can be exited by way of a thrilling tube slide or ropes. Tuote on saatavana myös teräsliu'ulla. Tube slides are available also in stainless steel.
Safety info
EN 1176-1, 3 TÜV
User age
6+
Wooden posts
Dark brown
Walls/HPL parts
Blue 640-2 Dark grey RAL 7024 Fuchsia RAL 4006 Green RAL 6018 Light grey RAL 7040 Lime green RAL 250-3 Red RAL 3020 Yellow RAL 1003
*

Technical information

  • Impact area, m²
    14.8
  • IMPACT AREA LENGTH, MM
    2970
  • IMPACT AREA WIDTH, MM
    2620
  • Falling space, m²
    40.4
  • FALLING SPACE LENGTH, MM
    18100
  • FALLING SPACE WIDTH, MM
    7230
  • Product lenght, mm
    14100
  • Product width, mm
    6500
  • Product height, mm
    5370
  • Height required, mm
    5370
  • Max. free fall height, mm
    1000
  • Number of users
    50
  • LARGEST PART, MM
    2600
  • HEAVIEST PART, KG
    30

Elements

  • Slides Slides
    2
  • Towers Towers
    2

MATERIAL

The default colours are dark grey and blue. These can be changed to another colour by configuration according to product specific rules. You can see the configuration options on the Switch It! tab. There are eight colour options available for the HPL panels. If the configuration options do not fulfil your needs, you can always get a MyDesign product.

Cubic is available for surface mounting. The foundation used for the product is steel-reinforced concrete platform, min. 250 mm thick. Foundation dimensions vary from one model to the next. A single cube or cuboid with play functions weighs approximately 2000 kg. Therefore, they can in some cases be used even on top of underground parking garages, as long as weight limits are taken into consideration.

Installation time: 1 cube/cuboid / 8 hrs / 2 persons

A cube/cuboid is always built and equipped with functions on the ground. This way it is quicker to install. A crane is needed for installation to lift the cubes on top of each other. Lifting eyes are included in the shipment.

Colors

Wooden posts
  • Dark brown Dark brown
Walls/HPL parts
  • Blue 640-2 Blue 640-2
  • Dark grey RAL 7024 Dark grey RAL 7024
  • Fuchsia RAL 4006 Fuchsia RAL 4006
  • Green RAL 6018 Green RAL 6018
  • Light grey RAL 7040 Light grey RAL 7040
  • Lime green RAL 250-3 Lime green RAL 250-3
  • Red RAL 3020 Red RAL 3020
  • Yellow RAL 1003 Yellow RAL 1003

Installation information

  • Foundation options
    Surface mounting
  • Installation time (for 1), H
    64
  • NETTO WEIGTH, KG
    5793.407

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
