made in finland
New
239022M

HALO CUBIC

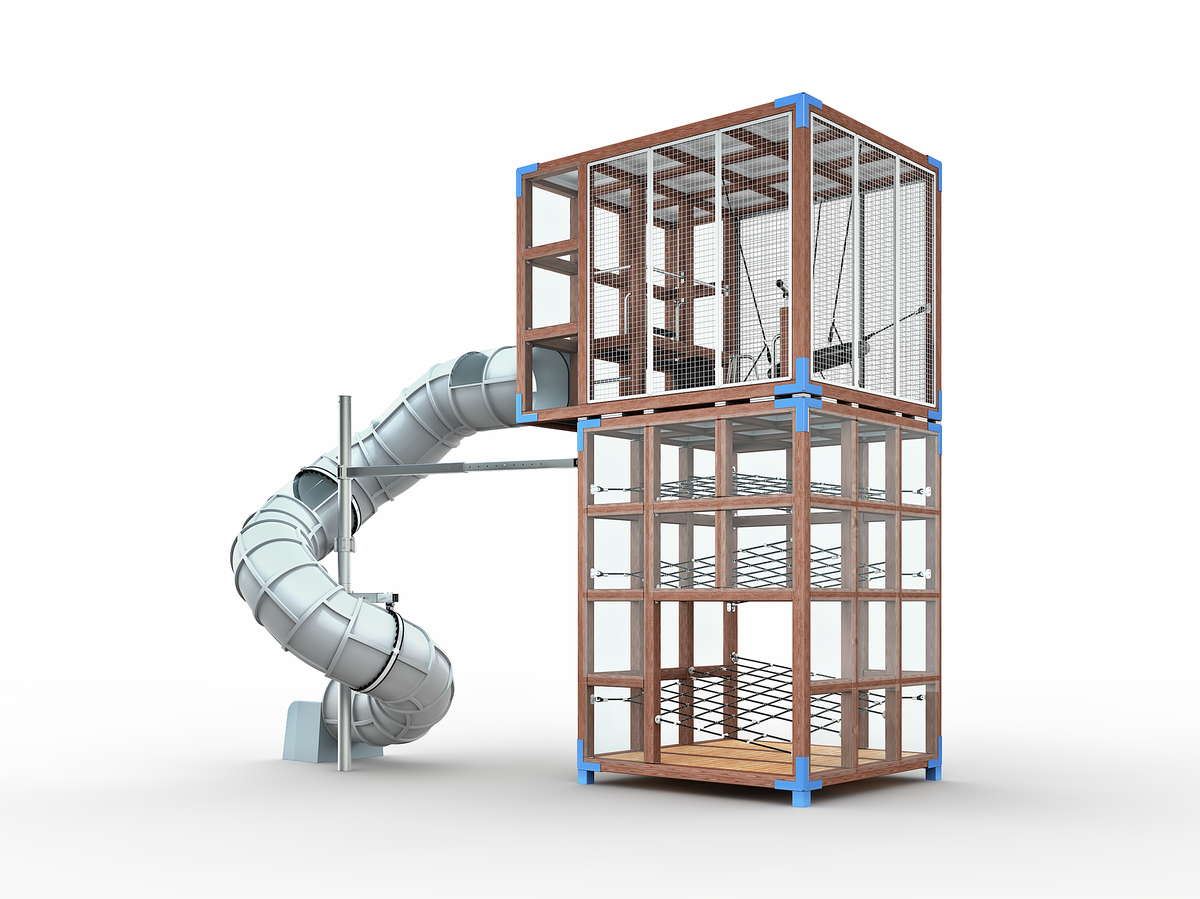

The vertical cuboid has three nets that can be used to climb up to a height of over 3 metres – all the way to the horizontal cuboid on the next level. The transparent walls offer a great view of the surroundings, and the bird’s nest swing and balancing ball are great places for observing. The long tube slide offers a fun, yet safe way of coming down. Tube slide available also in stainless steel.
Safety info
EN 1176-1, 3 TÜV
User age
6+
Wooden posts
Dark brown
*

Technical information

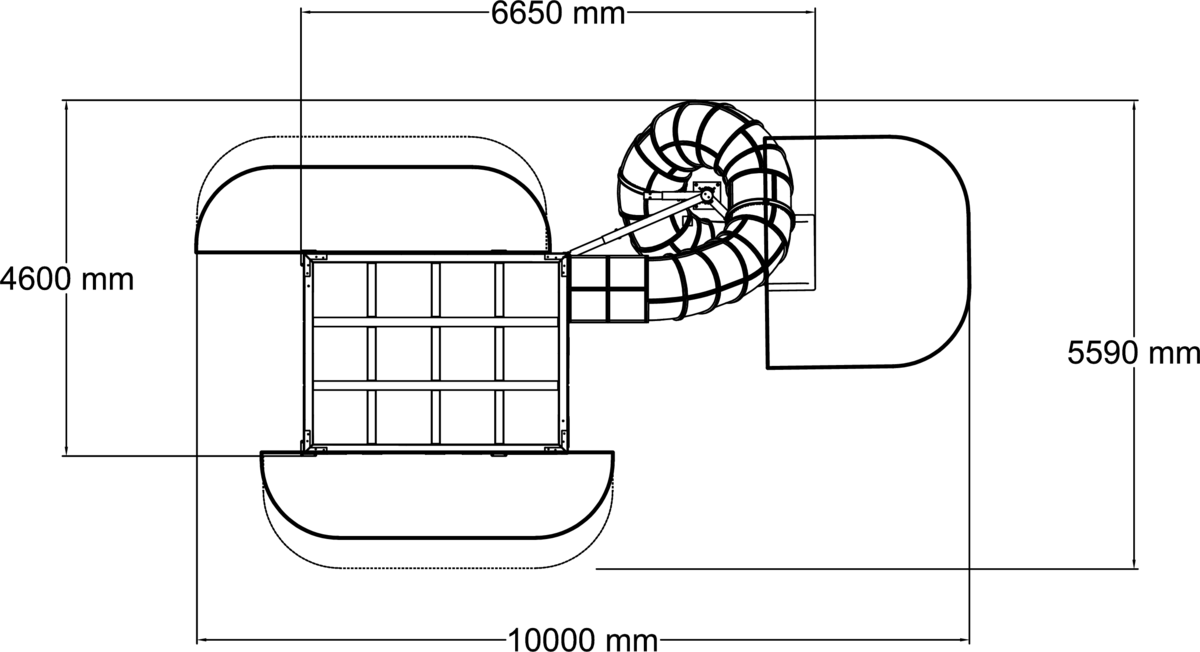

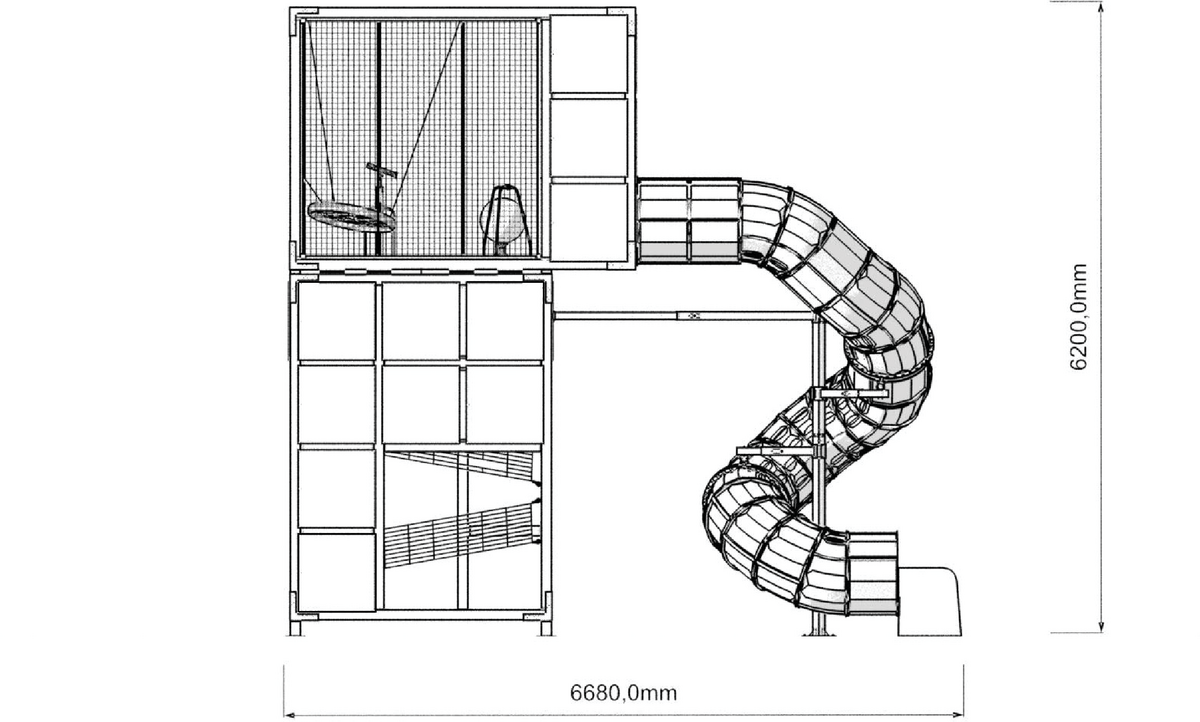

  • Impact area, m²
    7.4
  • Falling space, m²
    20.2
  • Product lenght, mm
    6650
  • Product width, mm
    4600
  • Product height, mm
    6200
  • Height required, mm
    6200
  • Max. free fall height, mm
    1000
  • Number of users
    37
  • LARGEST PART, MM
    3400
  • HEAVIEST PART, KG
    30

Elements

  • Slides Slides
    1
  • Towers Towers
    1
  • Roofs Roofs
    1
  • Climbing Climbing
    4

MATERIAL

The default colours are dark grey and blue. These can be changed to another colour by configuration according to product specific rules. You can see the configuration options on the Switch It! tab. There are eight colour options available for the HPL panels. If the configuration options do not fulfil your needs, you can always get a MyDesign product.

Cubic is available for surface mounting. The foundation used for the product is steel-reinforced concrete platform, min. 250 mm thick. Foundation dimensions vary from one model to the next. A single cube or cuboid with play functions weighs approximately 2000 kg. Therefore, they can in some cases be used even on top of underground parking garages, as long as weight limits are taken into consideration.Installation time: 1 cube/cuboid / 8 hrs / 2 personsA cube/cuboid is always built and equipped with functions on the ground. This way it is quicker to install. A crane is needed for installation to lift the cubes on top of each other. Lifting eyes are included in the shipment.

Colors

Wooden posts
  • Dark brown Dark brown

Installation information

  • Foundation options
    Surface mounting
  • Installation time (for 1), H
    32
  • NETTO WEIGTH, KG
    3309.805

Installation instructions


Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
