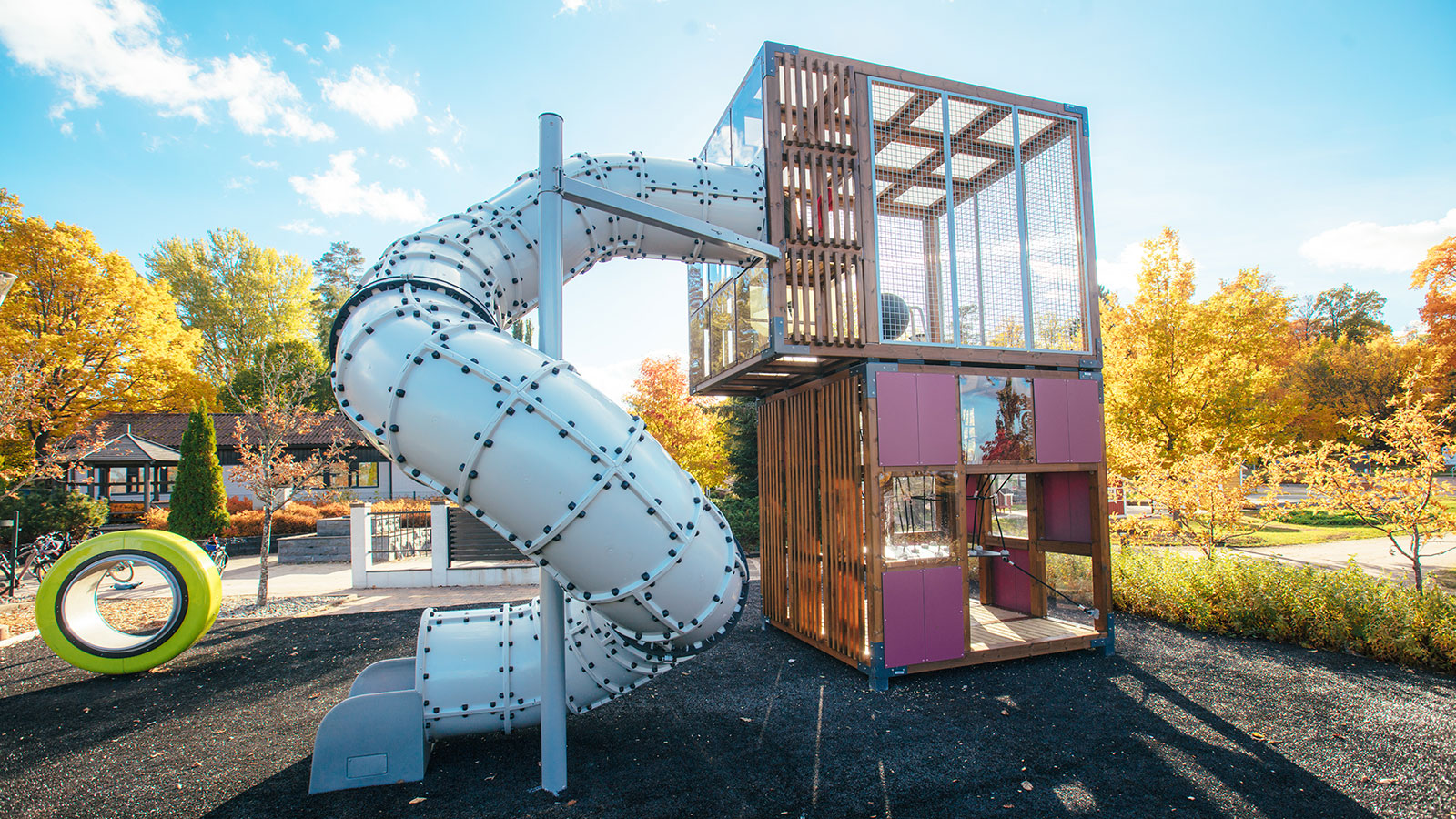

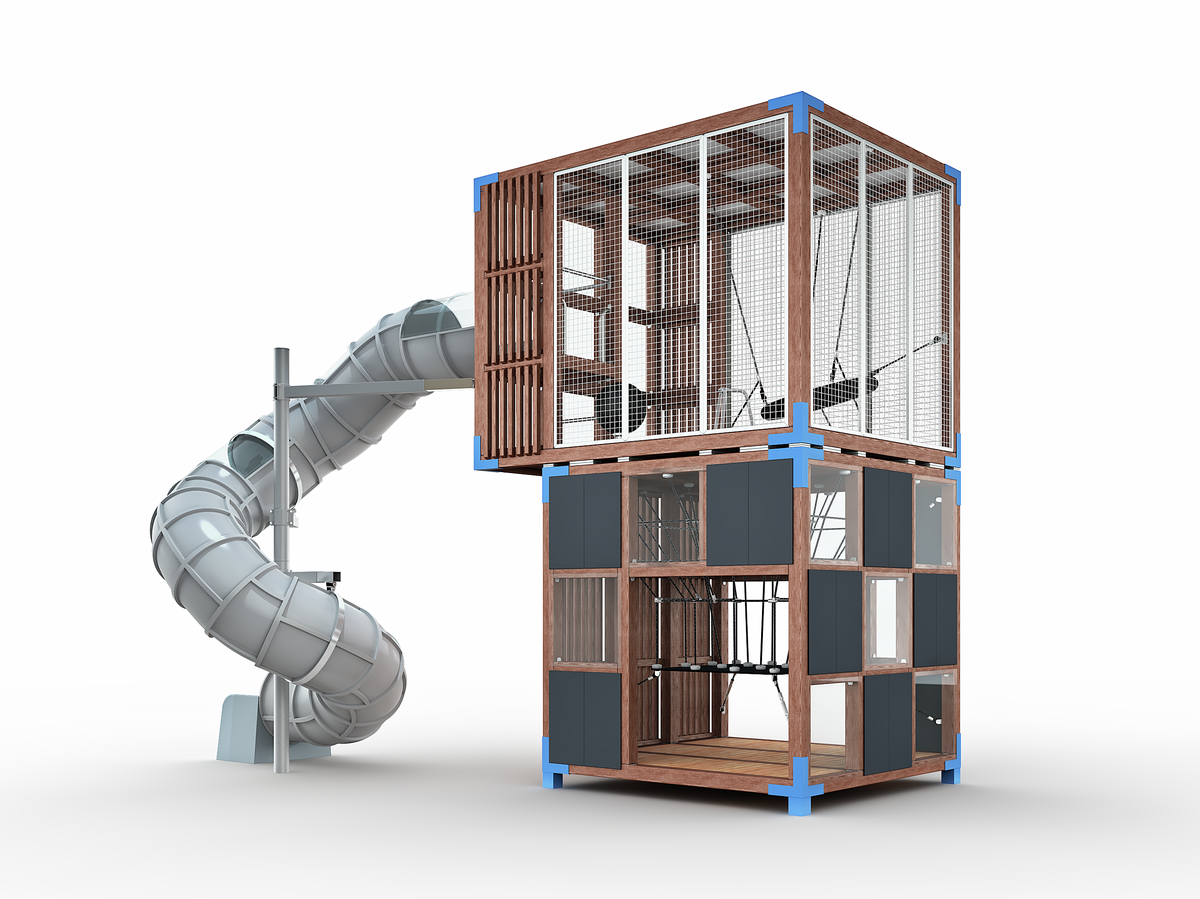

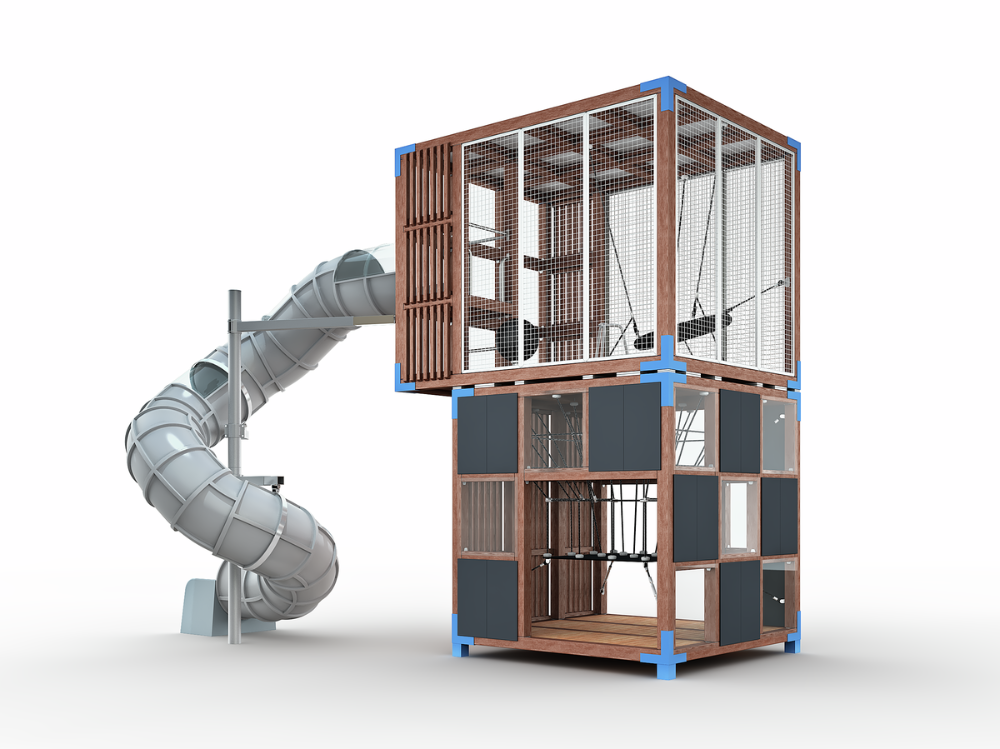

239021M HALO CUBIC
The unit consists of a cube and a cuboid, and it offers challenging but rewarding climbing experiences. Up high, users have a great view of their surroundings. The bird’s nest swing and balancing ball provide great places for observing. The long tube slide offers a fun, yet safe way of coming down.
SAFETY INFO
EN 1176-1 (3):2008
USER AGE
6+
Wooden posts
Brown
Walls/HPL parts
Blue 640-2 Dark grey RAL 7024 Fuchsia RAL 4006 Green RAL 6018 Light grey RAL 7040 Lime green RAL 250-3 Red RAL 3020 Yellow RAL 1003
*

Technical information

  • IMPACT AREA, M²
    8.8
  • FALLING SPACE, M²
    12.7

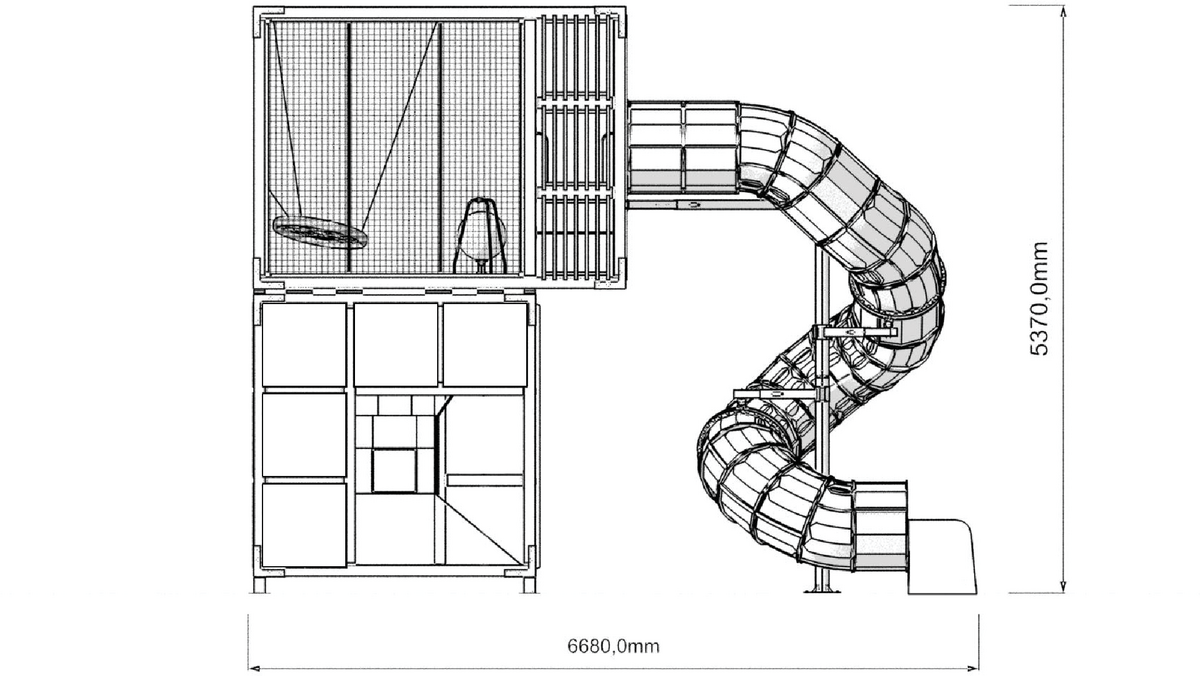

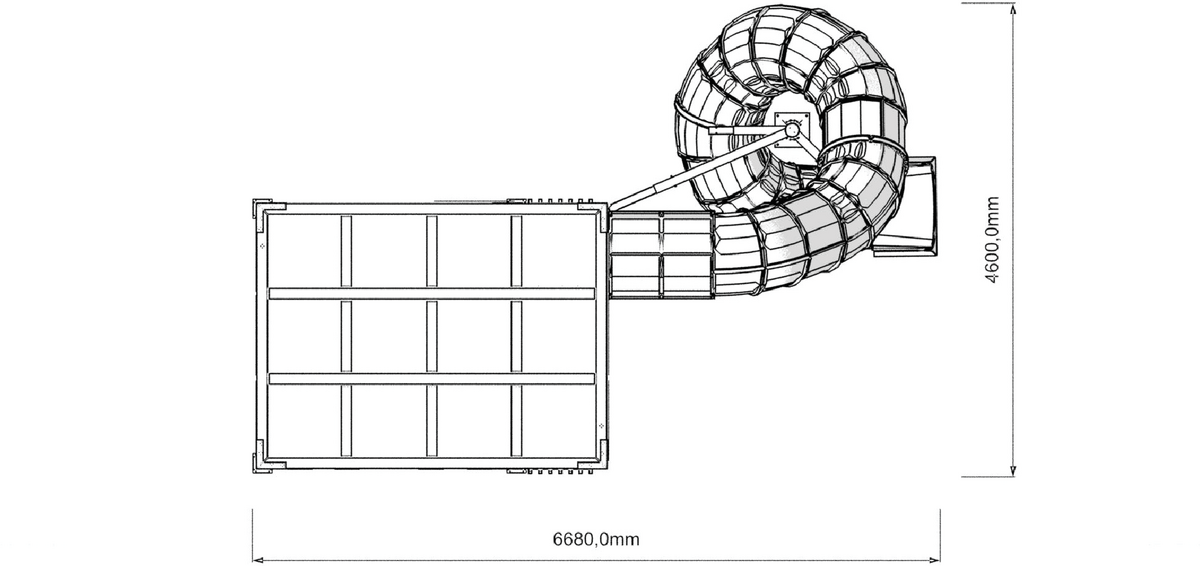

  • PRODUCT LENGTH, MM
    6680
  • PRODUCT WIDTH, MM
    4600
  • PRODUCT HEIGHT, MM
    5370
  • MAXIMUM FREE FALL HEIGHT, MM
    1000
  • NUMBER OF USERS
    29
  • LARGEST PART, MM
    3400
  • HEAVIEST PART, KG
    30

Elements

  • Slides and fireman's poles Slides and fireman's poles
    1
  • Towers Towers
    1

MATERIAL

You can choose the colour of the HPL wall panel from eight different options. A cube can have one colour. If you want to have a two-coloured product, you can choose the dark grey wall panel on another cube. Choose the wall panel colour from the eight colour options on the right.

Colors

Wooden posts
  • Brown Brown
Walls/HPL parts
  • Blue 640-2 Blue 640-2
  • Dark grey RAL 7024 Dark grey RAL 7024
  • Fuchsia RAL 4006 Fuchsia RAL 4006
  • Green RAL 6018 Green RAL 6018
  • Light grey RAL 7040 Light grey RAL 7040
  • Lime green RAL 250-3 Lime green RAL 250-3
  • Red RAL 3020 Red RAL 3020
  • Yellow RAL 1003 Yellow RAL 1003

Installation information

  • FOUNDATION OPTIONS
    Surface mounting
  • INSTALLATION TIME (FOR 1), H
    32
  • NETTO WEIGTH, KG
    2975.285

Installation instructions


Switch it Switch It!

This product has a great variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
