081007M Dip Bar

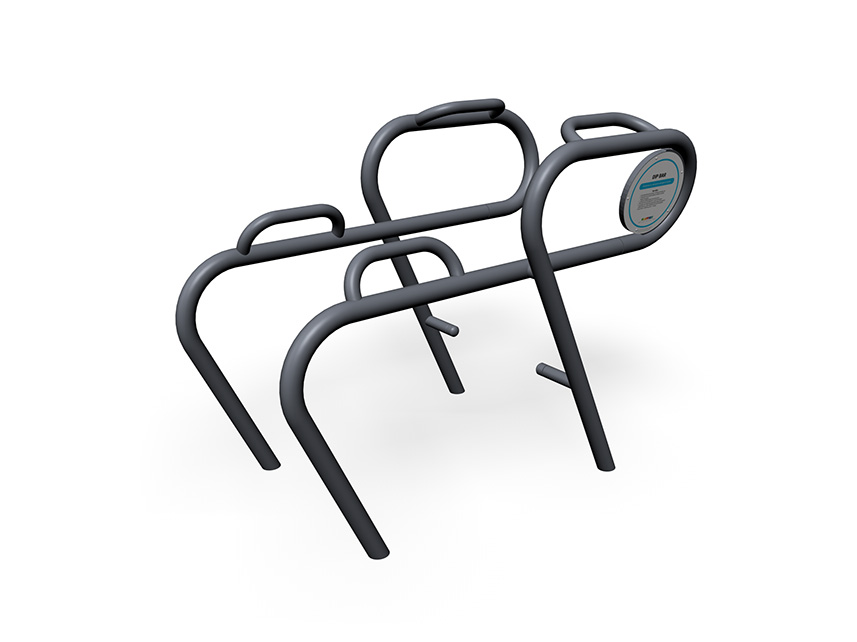

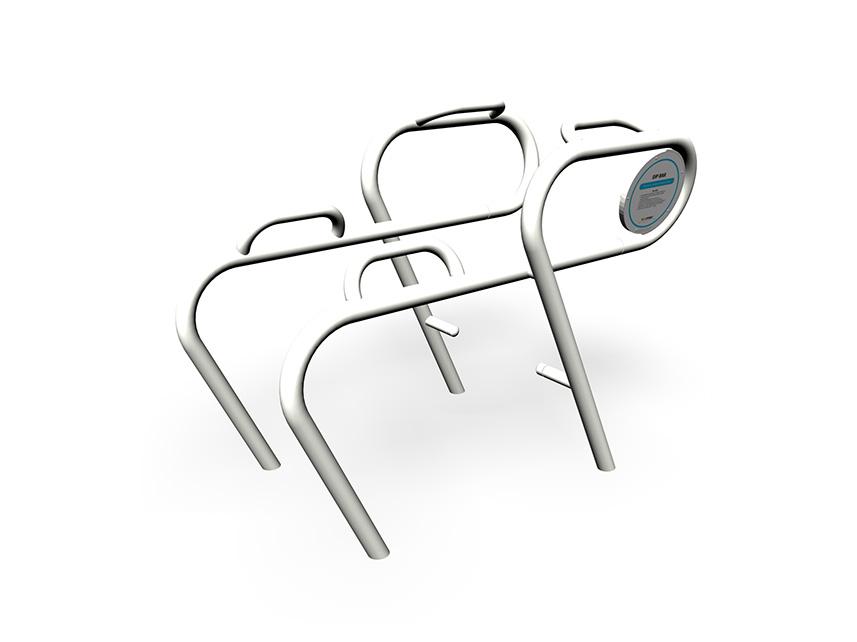

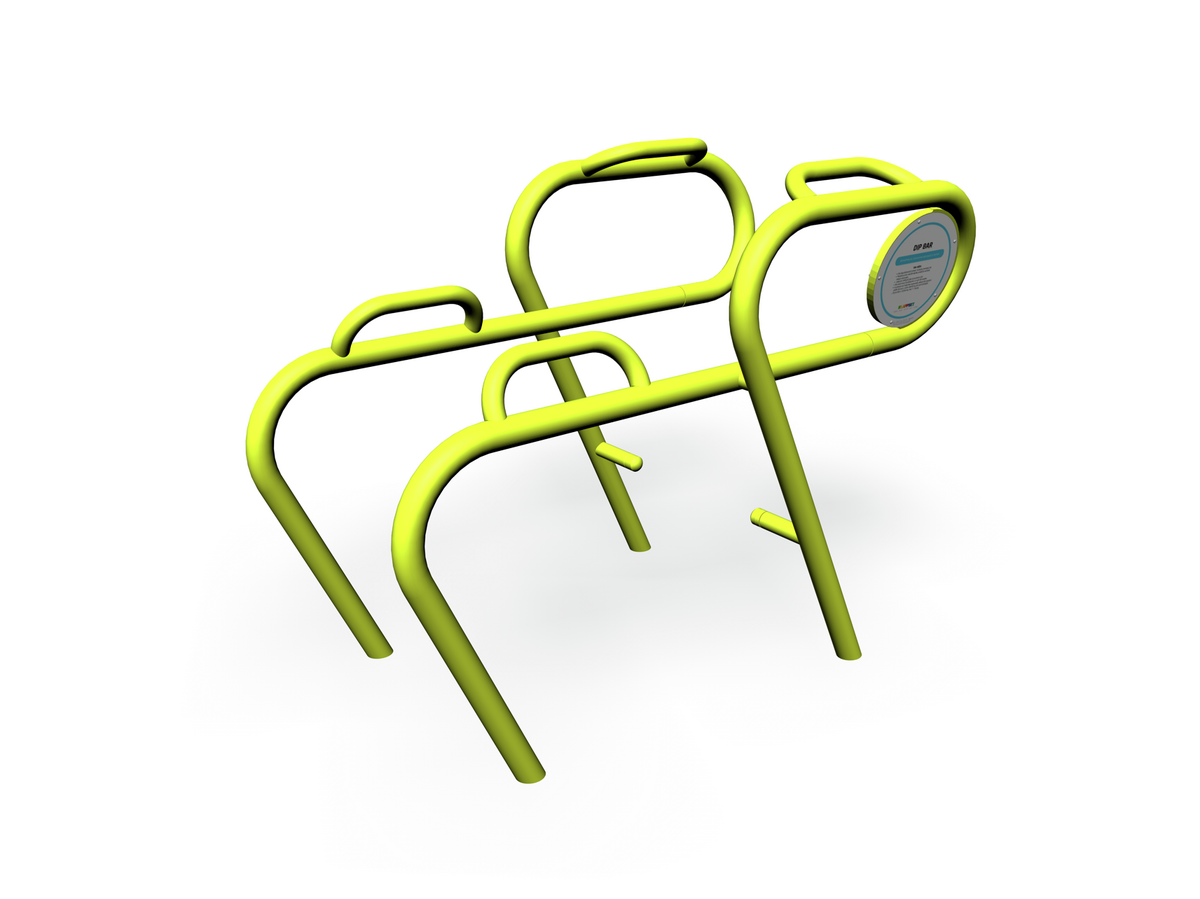

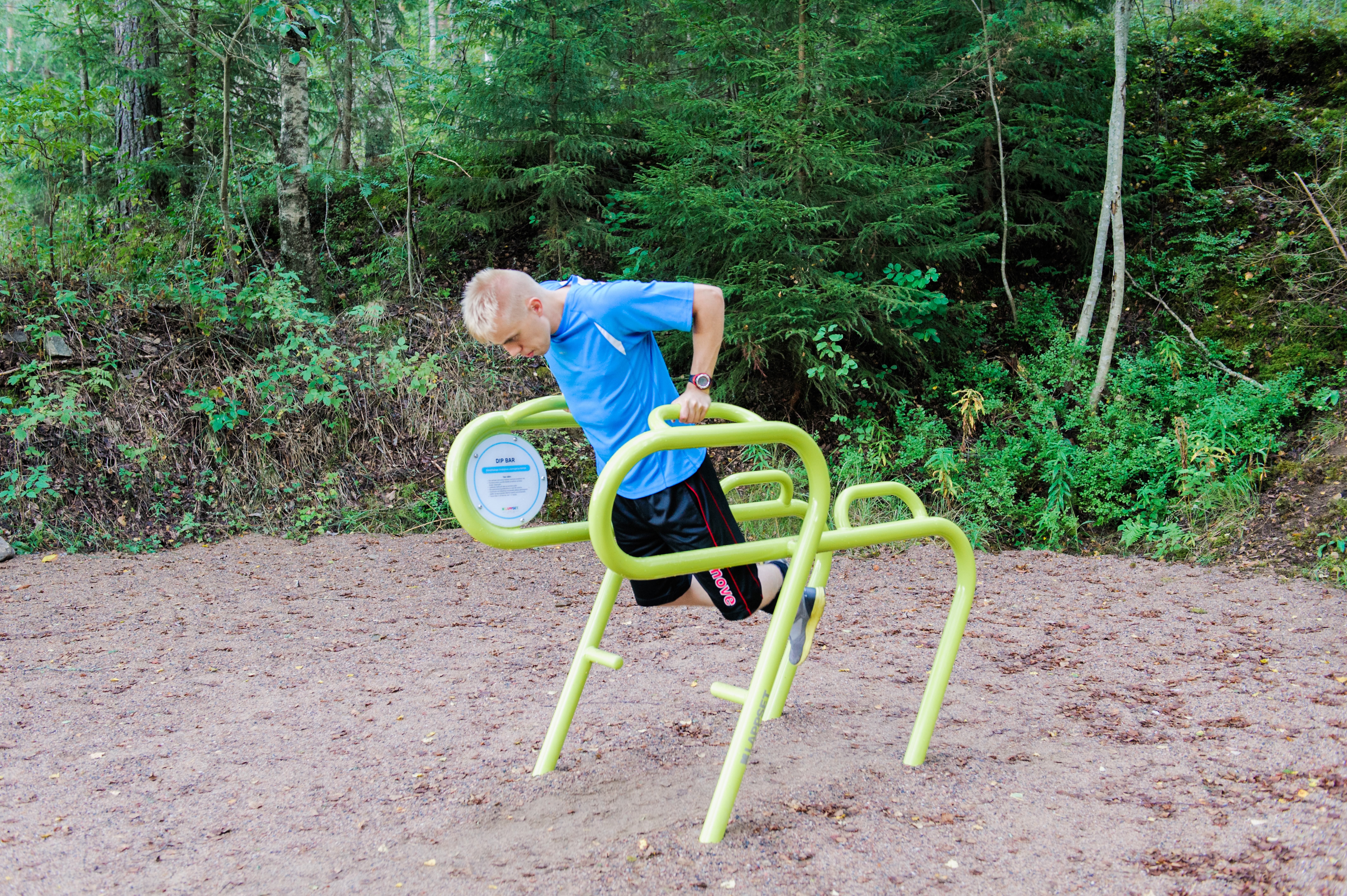

The Dip Bar comprises two curved bars with two hand grips and one footrest each. One set of hand grips is at a height of 912 mm and the other at 1,198 mm. Exercisers at all skill levels are sure to find suitable a version of the highly effective dip exercise using this equipment. Dips help to train the back, shoulder and arm muscles.
CATEGORY
Safety info
EN 1176-1, EN 16630
Colours
Grey Lime White
*

Technical information

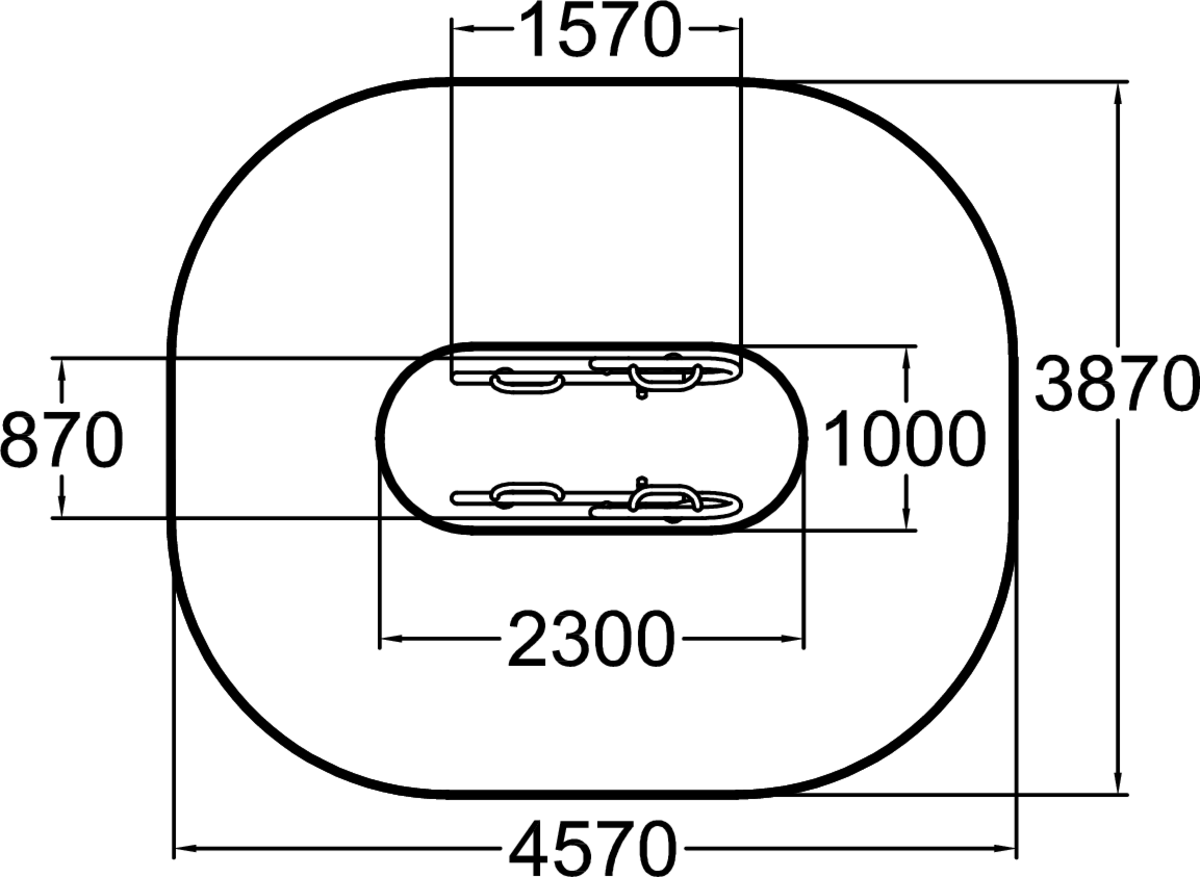

  • Impact area, m²
    15.8
  • IMPACT AREA LENGTH, MM
    4570
  • IMPACT AREA WIDTH, MM
    3870
  • Falling space, m²
    15.8
  • FALLING SPACE LENGTH, MM
    4570
  • FALLING SPACE WIDTH, MM
    4570
  • Product lenght, mm
    1570
  • Product width, mm
    820

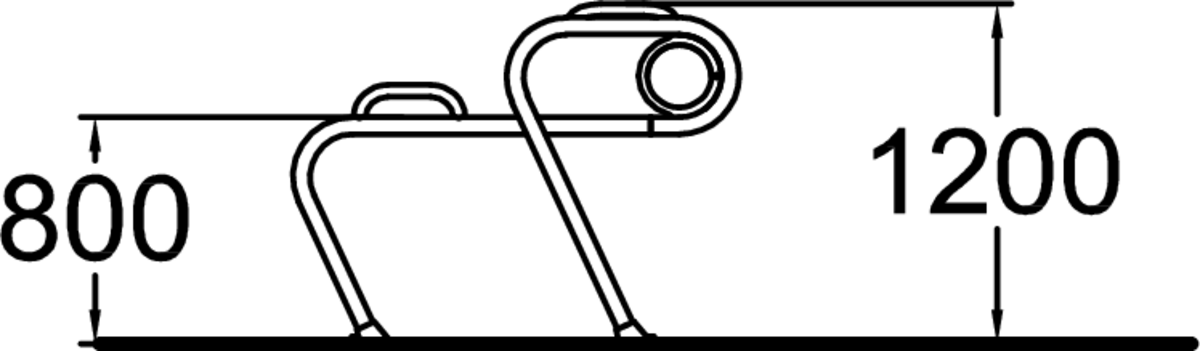

  • Product height, mm
    1200
  • Height required, mm
    2700
  • Max. free fall height, mm
    1200
  • AREA OF MOVEMENT, M²
    15.8
  • LARGEST PART, MM
    1570
  • HEAVIEST PART, KG
    42

MATERIAL

Materials used

Steel (LappCoat painted)

The frame is constructed of steel tube which provides a unique combination of high strength, a coarse surface and excellent moulding properties. The steel tube has been treated with our unique Lappcoat coating* which was specifically developed with outdoor furniture in mind.

Colors

Colours
  • Grey Grey
  • Lime Lime
  • White White

Installation information

  • Foundation options
    Deep mounting, Surface mounting
  • NETTO WEIGTH, KG
    81.633

Installation instructions


Switch it Switch It!

This product has a great variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
