137075M

Climbing Track

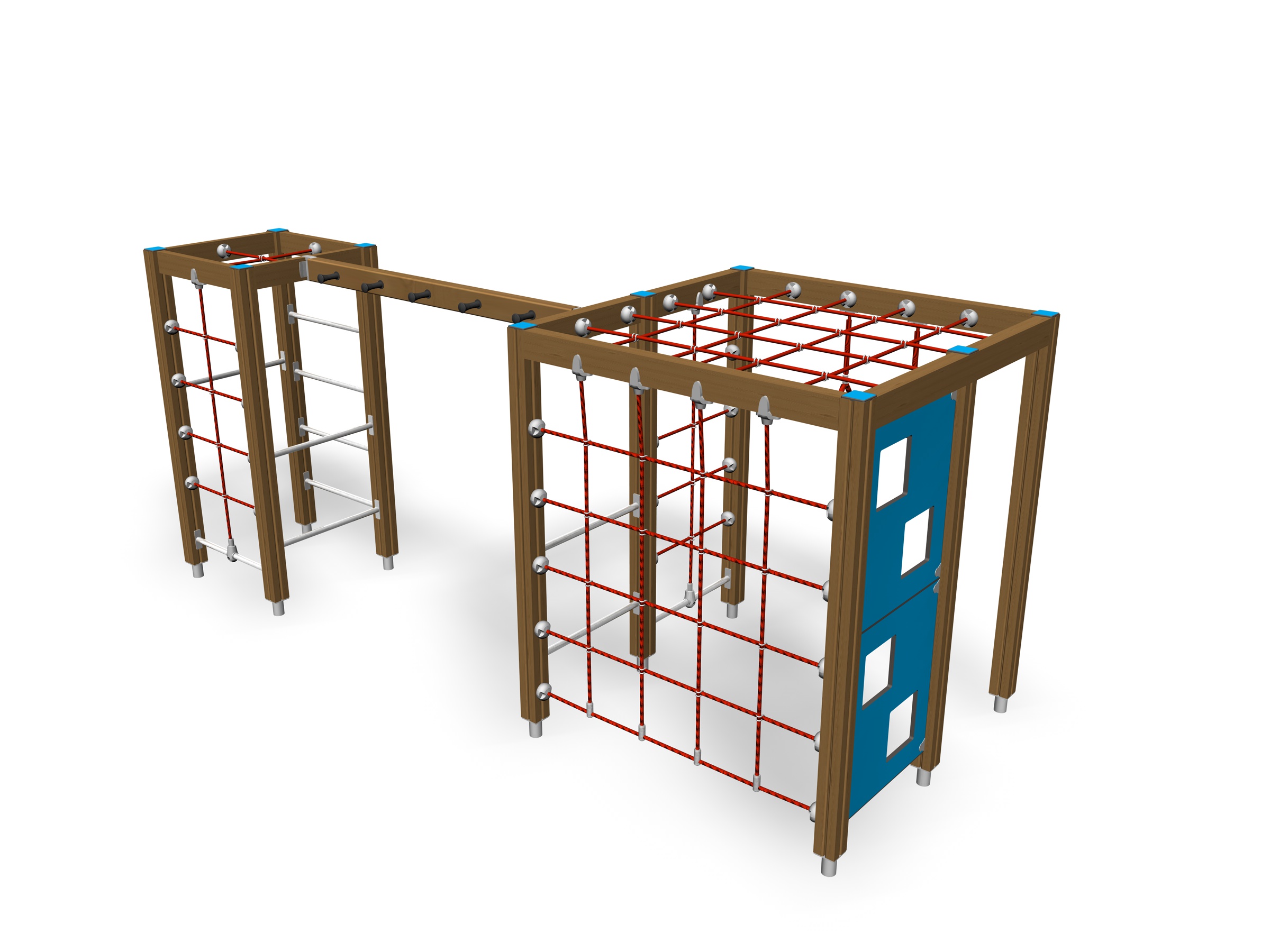

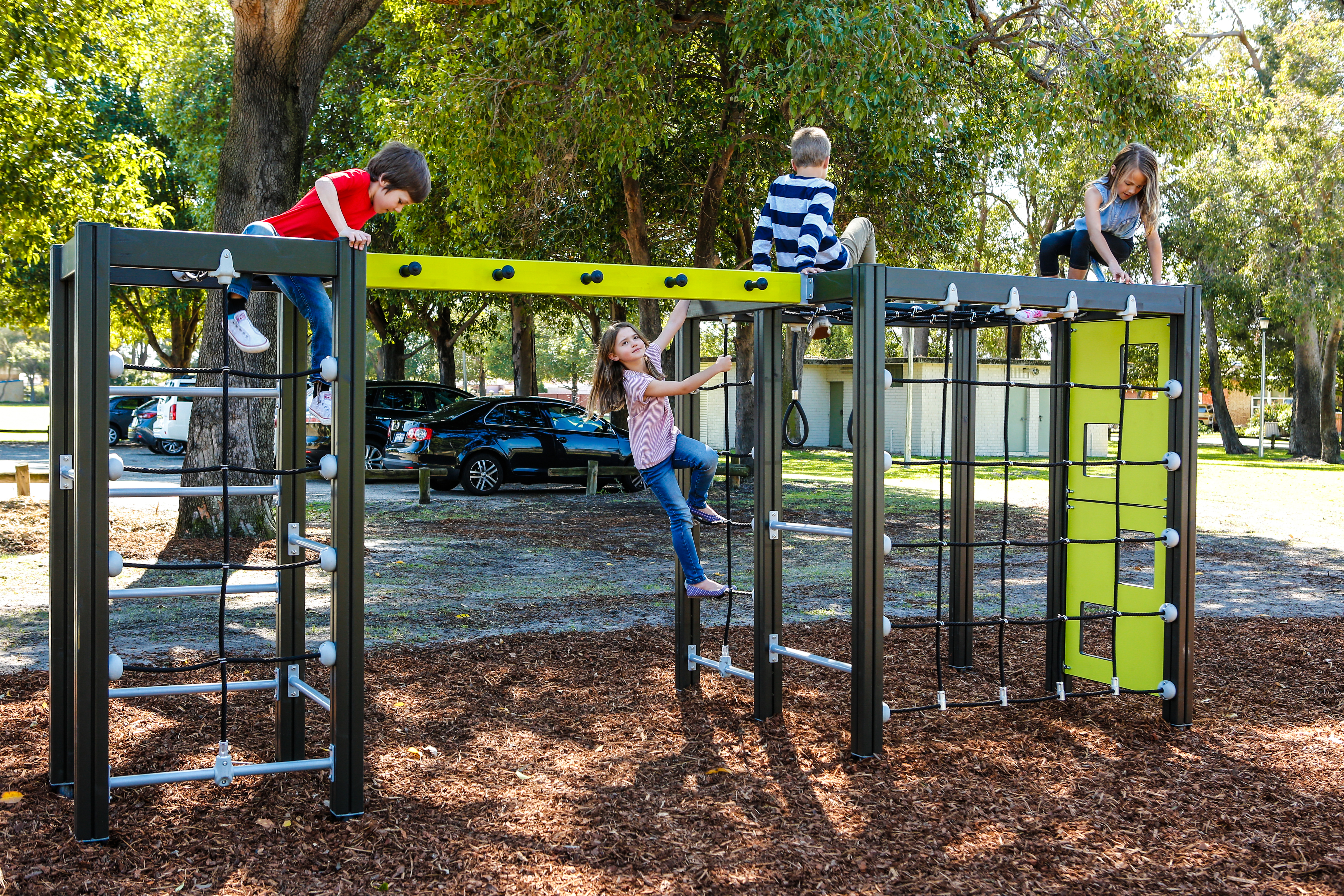

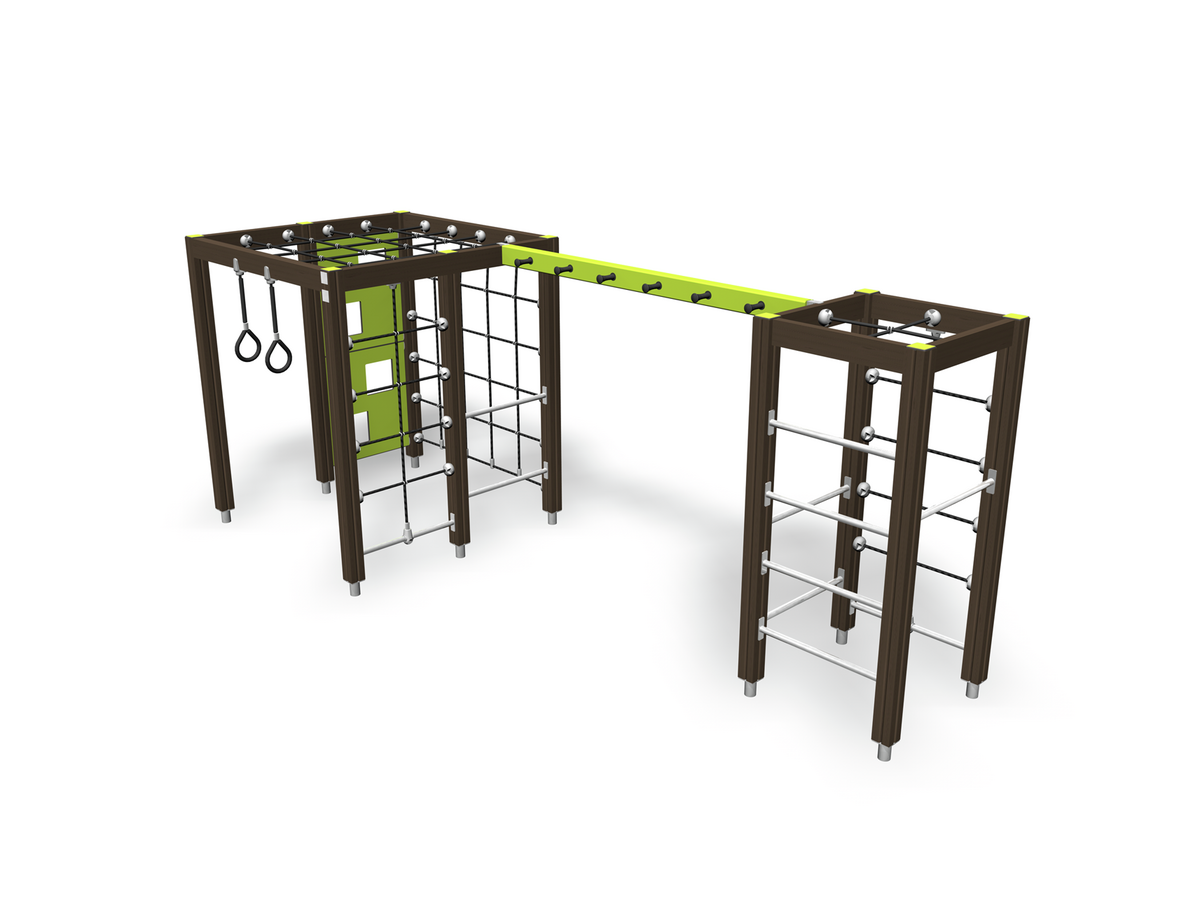

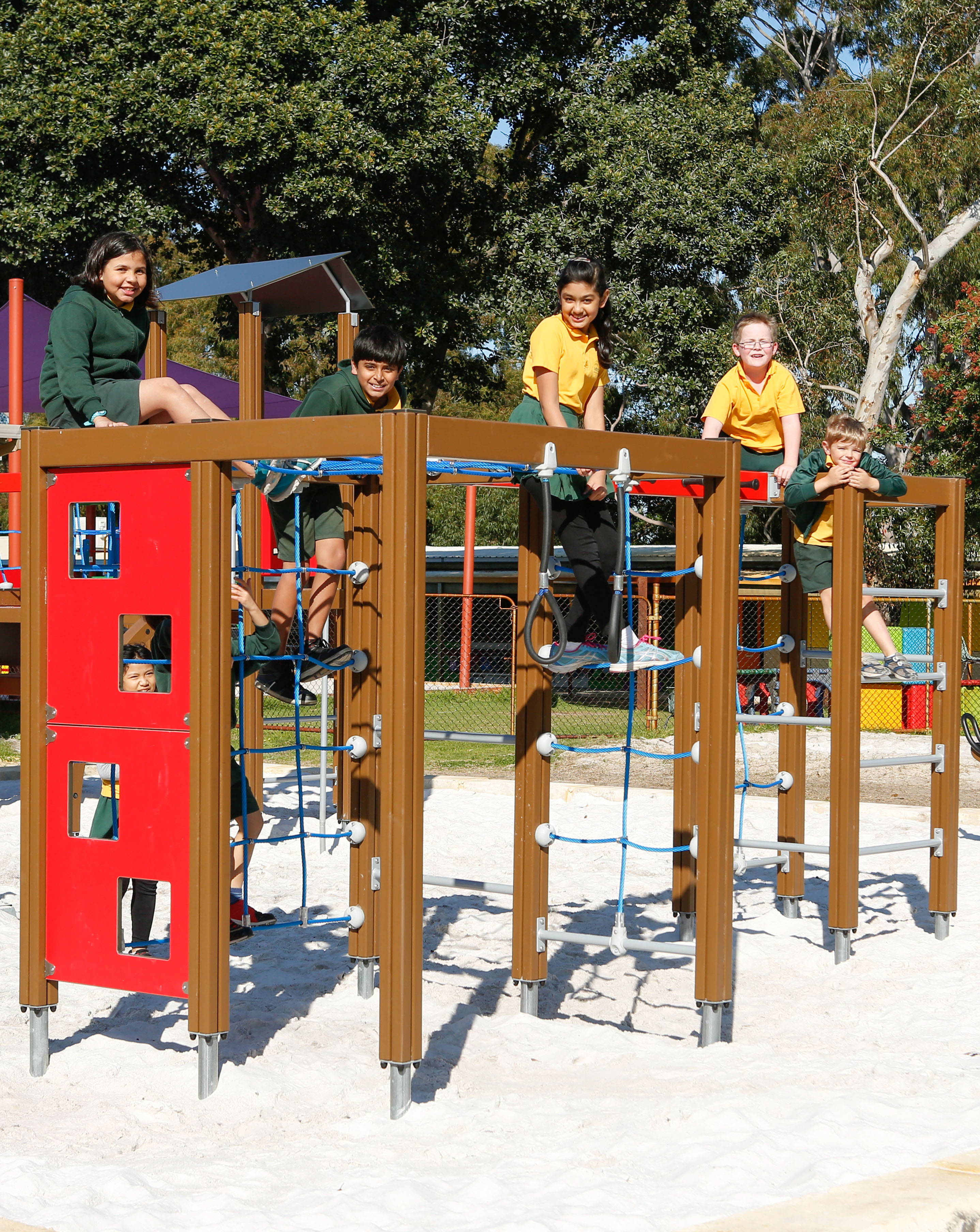

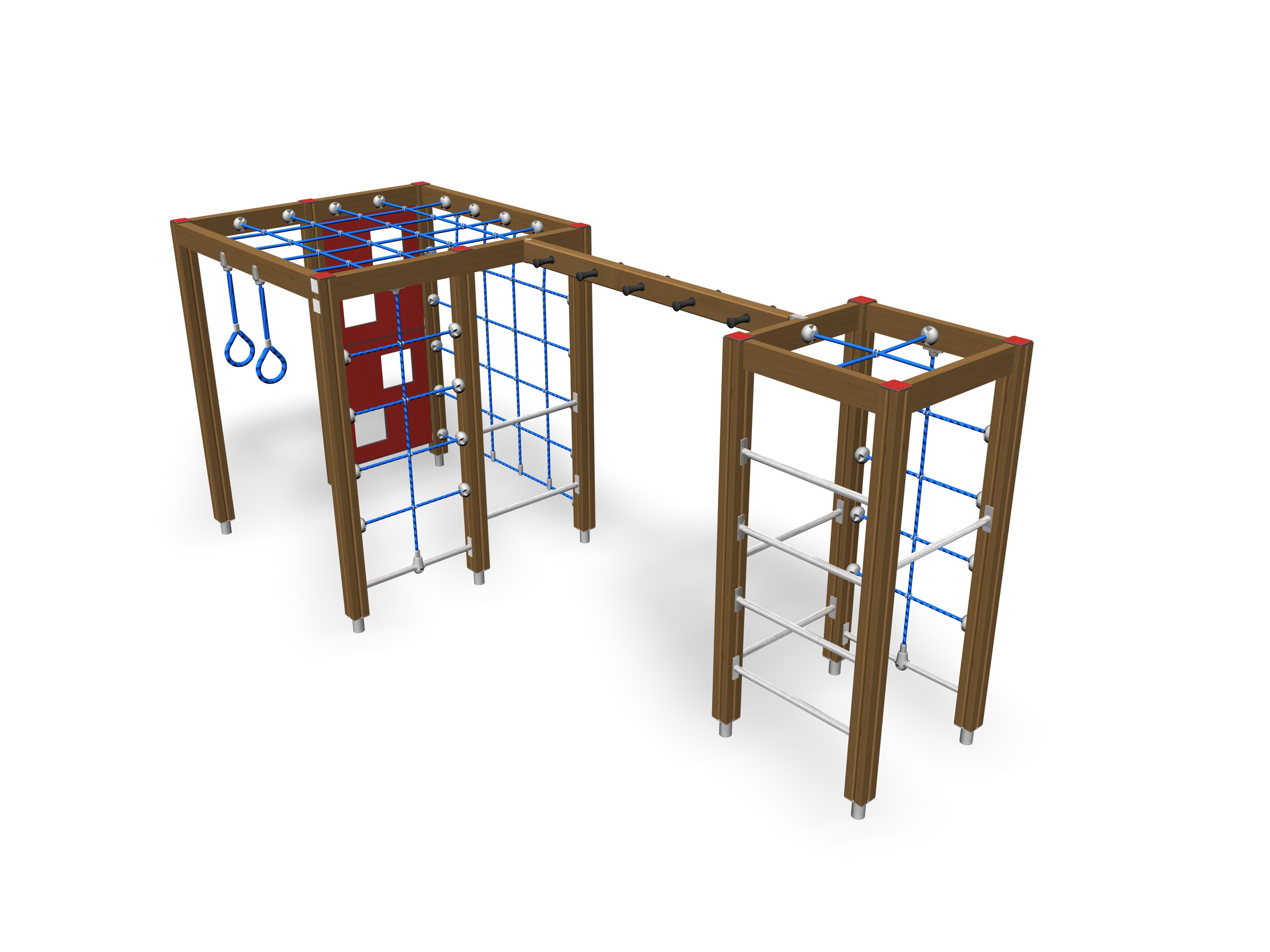

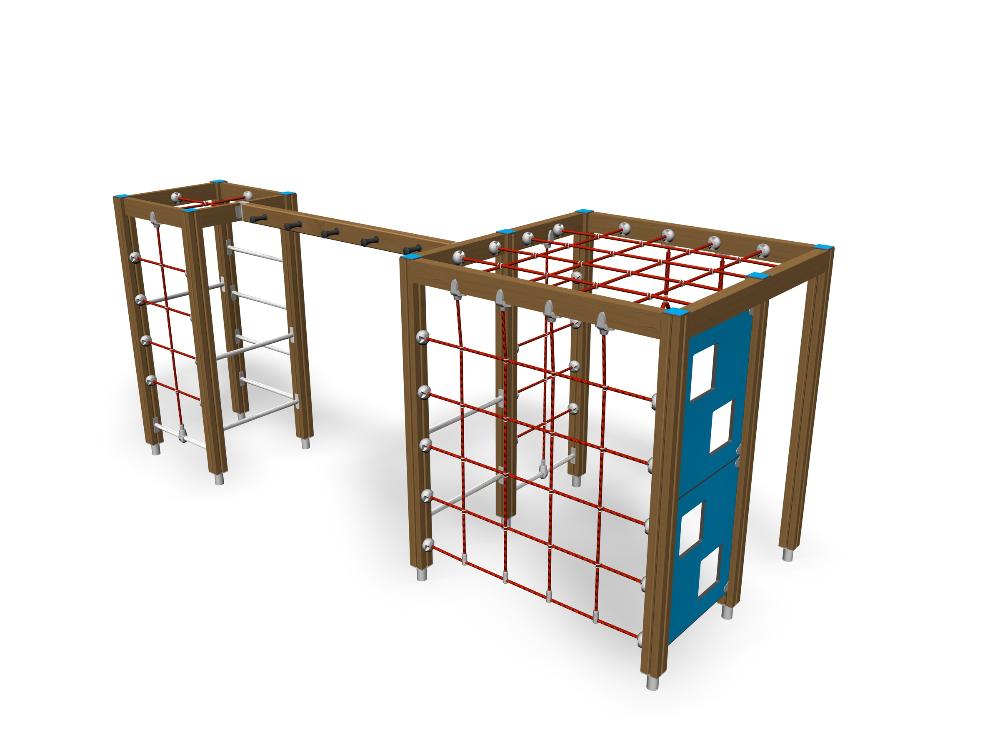

A climbing frame with two towers. These towers are connected by a beam with grips, allowing children to move from one tower to the other. The larger tower includes two climbing nets along its sides and one on its top, a climbing wall with holes and a set of gymnastics rings. The smaller tower contains a rung ladder and a beam for hanging from, as well as two climbing nets, one along the sides of the tower, the other on its top. Thanks to its design, which allows for a variety of climbing and gymnastics options, the climbing frame can be used simultaneously by a large number of children. Climbing develops children's sense of balance and strength.
CATEGORY
Safety info
EN 1176-1 TÜV
User age
3+
Colours
Apple Red - light brown posts and red hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates Lime green - dark brown posts and lime green hpl plates Liquorice Grey - grey posts and light grey hpl plates Tuttifrutti - light brown posts and blue wooden walls
*

Technical information

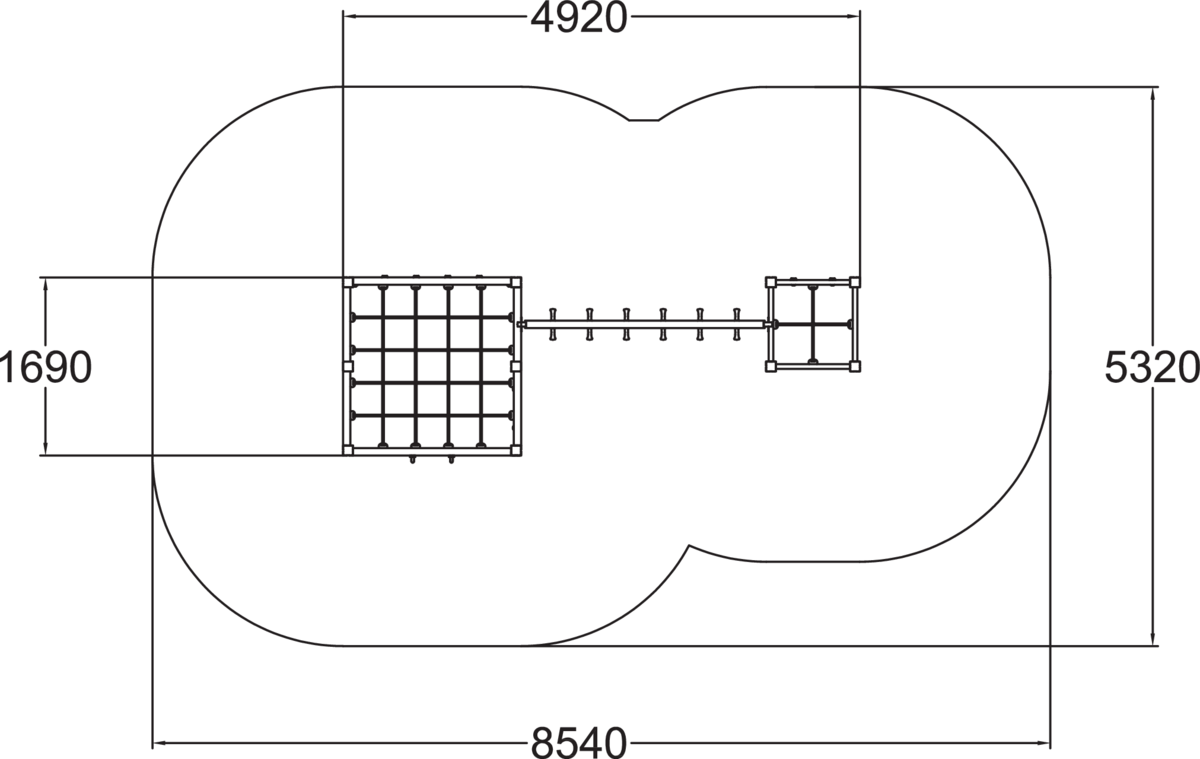

  • Impact area, m²
    39.1
  • IMPACT AREA LENGTH, MM
    8540
  • IMPACT AREA WIDTH, MM
    5320
  • Falling space, m²
    39.1
  • FALLING SPACE LENGTH, MM
    8540
  • FALLING SPACE WIDTH, MM
    5320
  • Product lenght, mm
    4920
  • Product width, mm
    1690

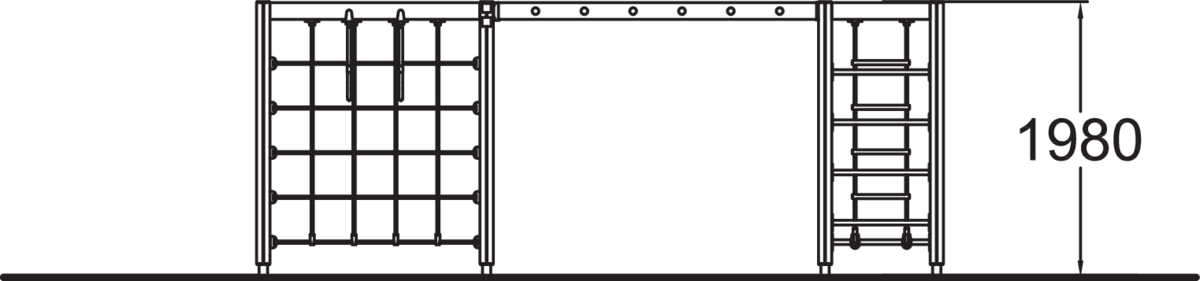

  • Product height, mm
    1980
  • Height required, mm
    3470
  • Max. free fall height, mm
    1970
  • Number of users
    16
  • AREA OF MOVEMENT, M²
    0
  • LARGEST PART, MM
    1870
  • HEAVIEST PART, KG
    13

Elements

  • Towers Towers
    2
  • Climbing Climbing
    11

MATERIAL

The nets are wrought from durable, coated steel cables. Cruciform stainless steel joints keep the crossings firmly in place, protecting the fabric against wear.

Colors

Colours
  • Apple Red - light brown posts and red hpl plates Apple Red - light brown posts and red hpl plates
  • Candy Fuchsia - dark brown posts and fuchsia hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates
  • Lime green - dark brown posts and lime green hpl plates Lime green - dark brown posts and lime green hpl plates
  • Liquorice Grey - grey posts and light grey hpl plates Liquorice Grey - grey posts and light grey hpl plates
  • Tuttifrutti - light brown posts and blue wooden walls Tuttifrutti - light brown posts and blue wooden walls

Installation information

  • Foundation options
    Deep mounting, Surface mounting
  • Installation time (for 1), H
    10
  • NETTO WEIGTH, KG
    321.718

Installation instructions

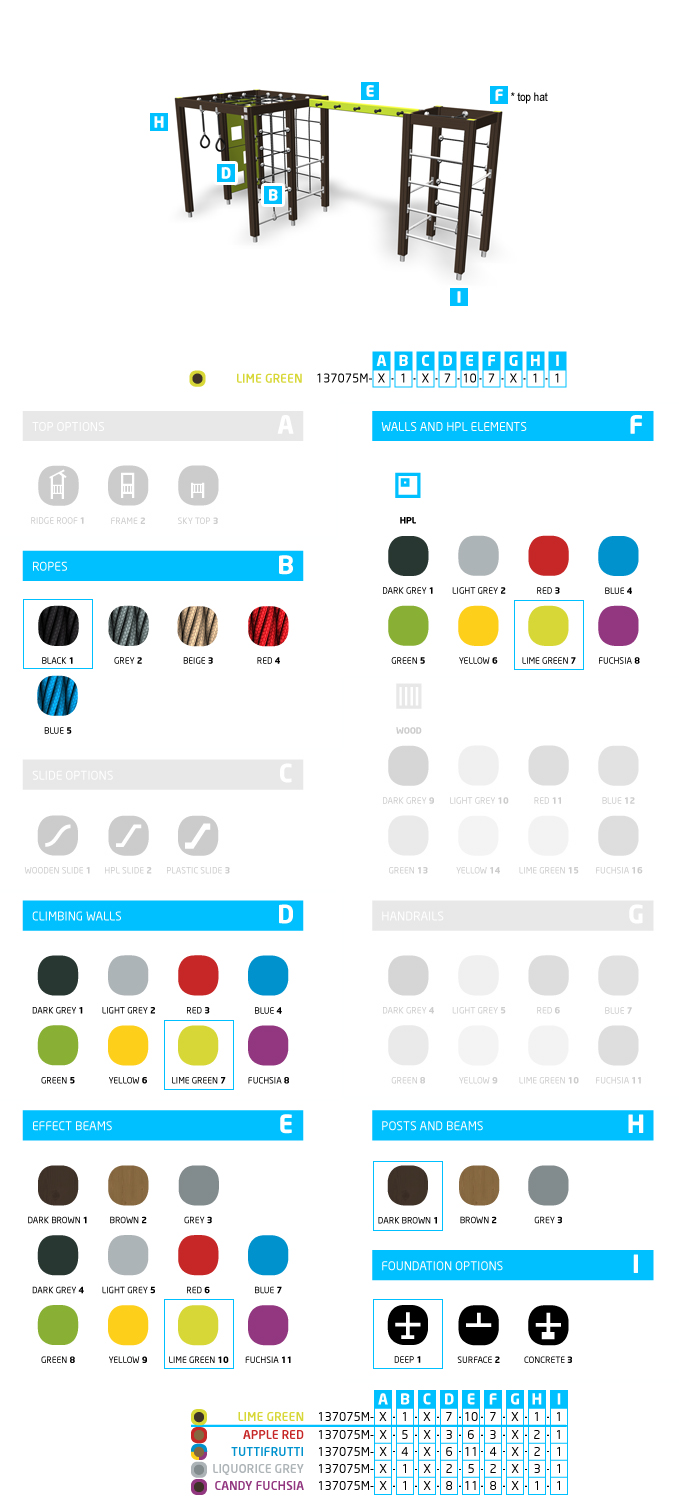

Switch it Switch It!

This product has a variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
