made in finland
Inclusive
137417M

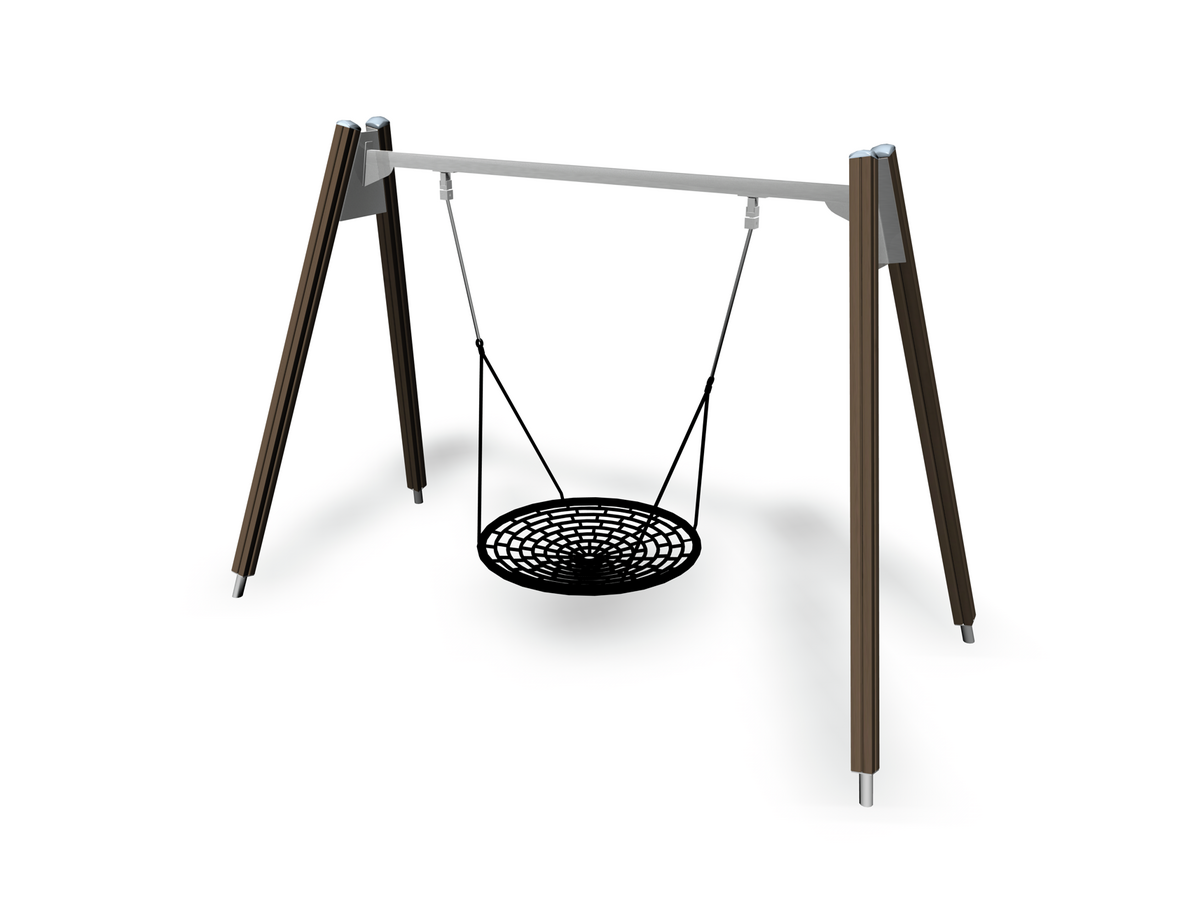

Bird's Nest Swing

This swing is everyone’s favourite! Children, youngsters and adults alike will love swinging and lounging in the birds' nest swing. With the streamlined design it will fit nicely in all surroundings. The spacious and high quality seat is designed and manufactured to last very high usage, without compromising the comfort of the swing users. To ensure that people with physical limitations can access the product, please place it so that the surface is hard enough for independent or assisted access.

Safety info
EN 1176-1, 2 TÜV
User age
1+
Colours
Apple Red - light brown posts and red hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates Lime green - dark brown posts and lime green hpl plates Liquorice Grey - grey posts and light grey hpl plates Tuttifrutti - light brown posts and blue wooden walls
*

Technical information

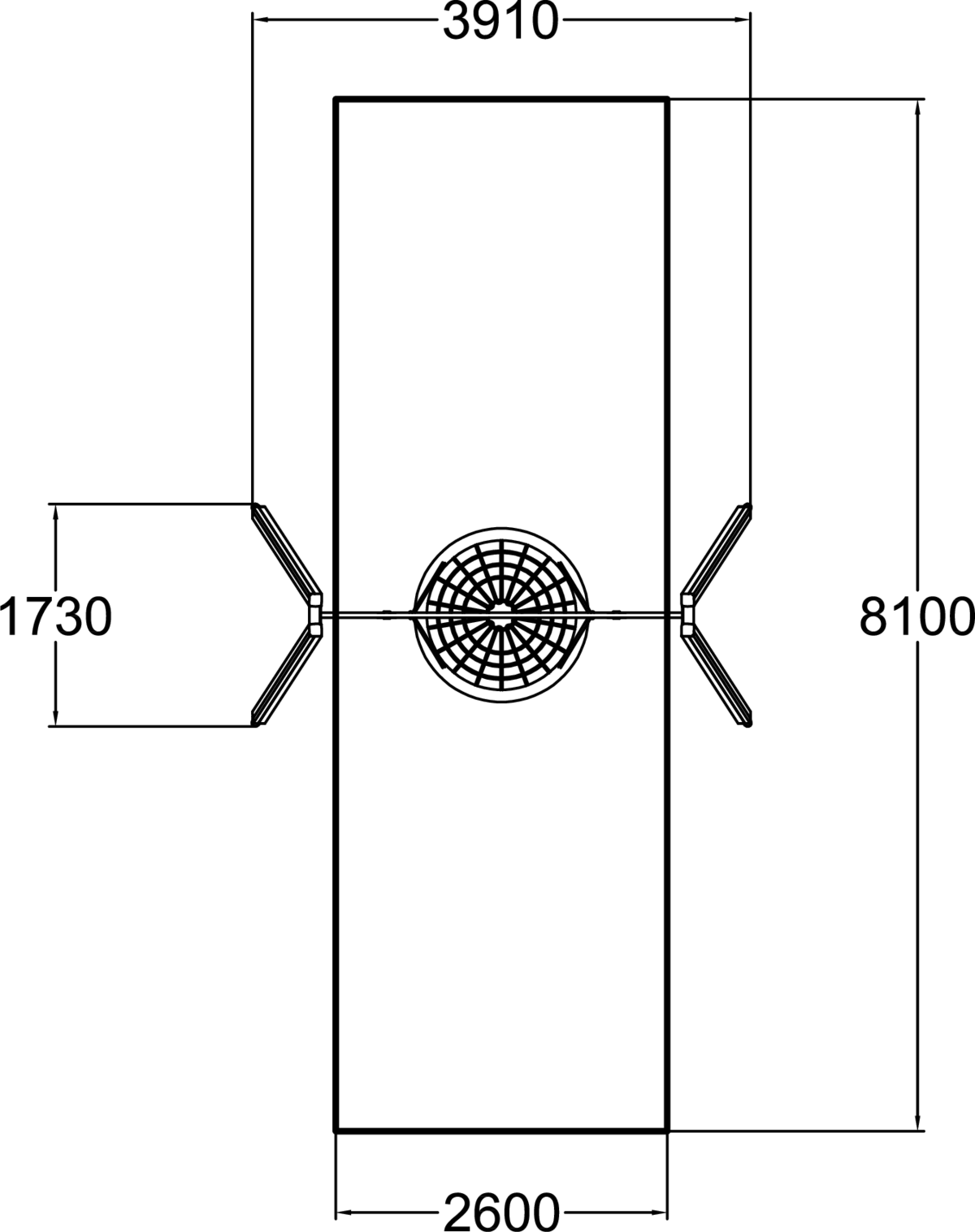

  • Impact area, m²
    21.1
  • IMPACT AREA LENGTH, MM
    8100
  • IMPACT AREA WIDTH, MM
    2600
  • Falling space, m²
    21.1
  • FALLING SPACE LENGTH, MM
    8100
  • FALLING SPACE WIDTH, MM
    2600
  • Product lenght, mm
    3910
  • Product width, mm
    1730

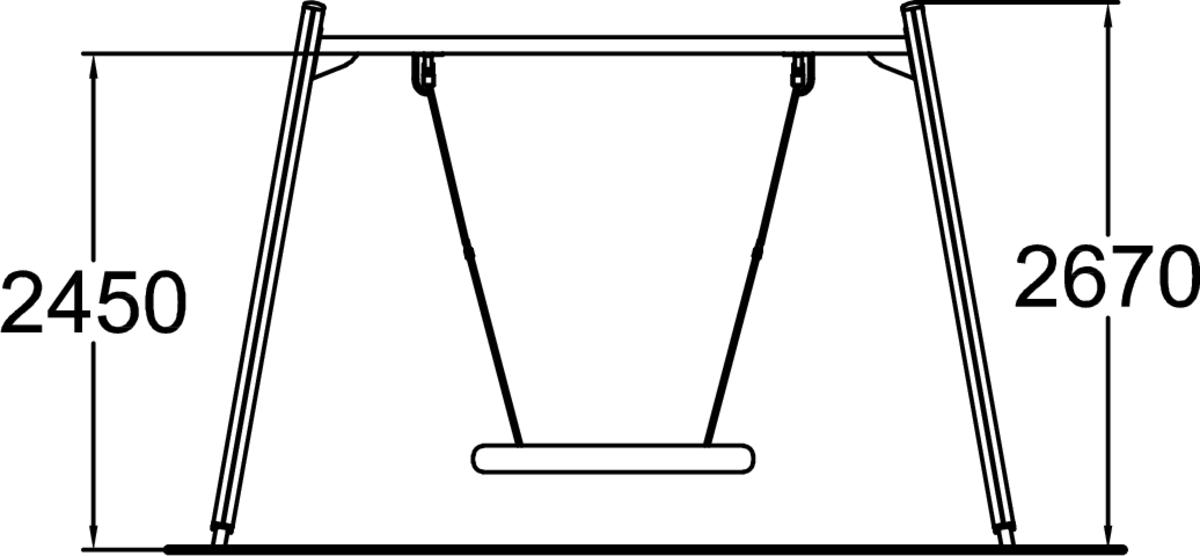

  • Product height, mm
    2700
  • Height required, mm
    2900
  • Max. free fall height, mm
    1400
  • Number of users
    4
  • LARGEST PART, MM
    2940
  • HEAVIEST PART, KG
    55.895

MATERIAL

The seat, diameter of Ø 1.365 metres, is made of steel-enforced rope.

The swing chains are made of ø 7 mm stainless steel, which guarantees the best protection against corrosion even in the harshest conditions. The chain goes all the way to the seat and does not change into rope / cable halfway. The chain is protected by a rubbery protective cover. The steel chain ensures that the swing can bear heavier load.

The swing bearings are cast stainless steel passivated against corrosion. The structure has been efficiently designed to eliminate all movement outside the actual bearing surfaces. The bearings are soundless and highly durable against mechanical and environmental strain. The bearings do not require maintenance as such, but are easy to detach with tools, for seasonal storage for example.

The painted framework of the swings consists of pressure-impregnated, glue-laminated, fine-grained timber and a steel beam in grey colour.

Underground foundation without concreting can be performed using foundation plates. You can choose the foundation type when placing your order.

Colors

Colours
  • Apple Red - light brown posts and red hpl plates Apple Red - light brown posts and red hpl plates
  • Candy Fuchsia - dark brown posts and fuchsia hpl plates Candy Fuchsia - dark brown posts and fuchsia hpl plates
  • Lime green - dark brown posts and lime green hpl plates Lime green - dark brown posts and lime green hpl plates
  • Liquorice Grey - grey posts and light grey hpl plates Liquorice Grey - grey posts and light grey hpl plates
  • Tuttifrutti - light brown posts and blue wooden walls Tuttifrutti - light brown posts and blue wooden walls

Installation information

  • Foundation options
    Deep mounting, Surface mounting
  • Installation time (for 1), H
    6
  • NETTO WEIGTH, KG
    182.14

Installation instructions

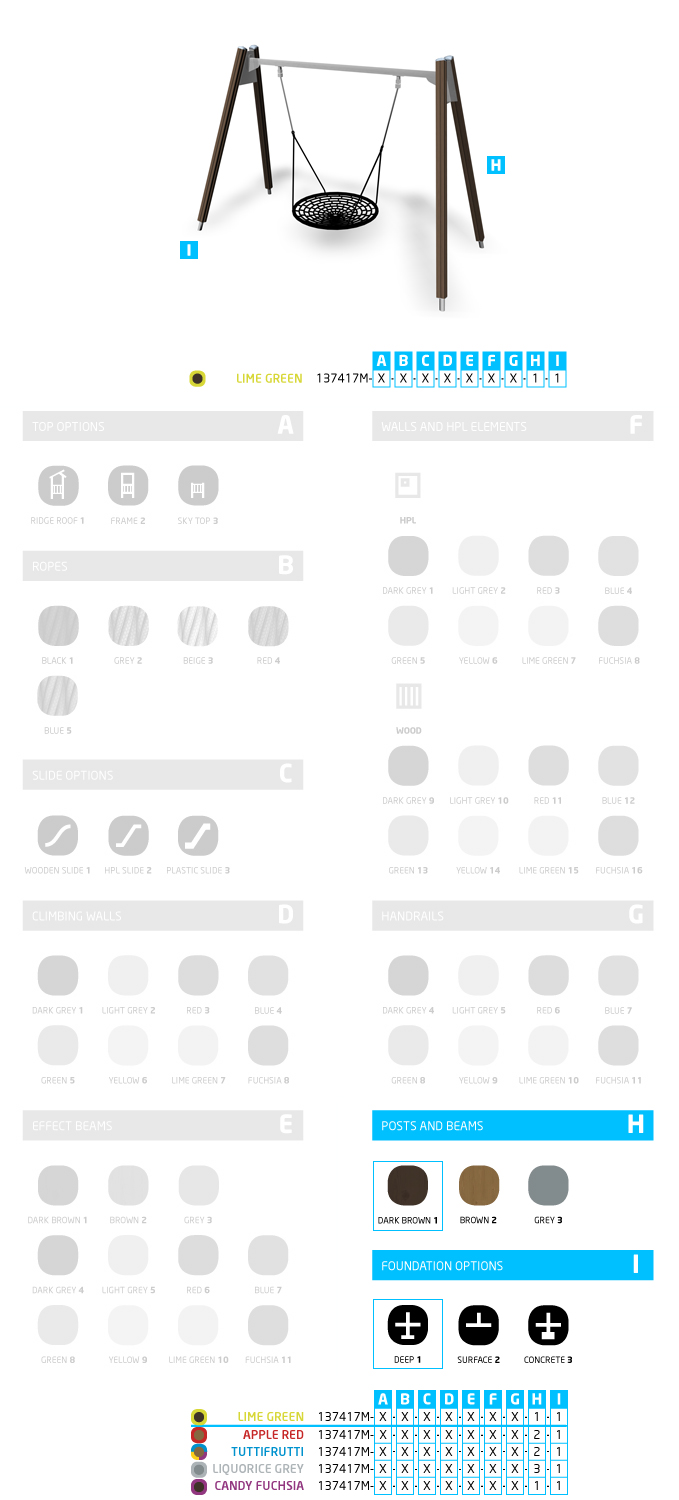

Switch it Switch It!

This product has a great variety of different combination possibilities. Choose the colors, materials and elements that you want. Please note that the SwitchIt! Options may have an impact on the product price. Please contact our customer service or your local dealer and ask for an offer of a customized product.
